SICKSICK WF Fork Sensors
Label and small-part detection fork sensors from 2 mm to 180 mm fork width.
- WF
- WFS
- WFE
- Sender and receiver pre-aligned in one housing
- Fork widths from 2 mm to 180 mm
- WFS types for label and transparent label detection
- Teach, plus/minus or potentiometer adjustment
- PNP/NPN outputs
Price on request — quoted per part number
Quotes within 24 hours on working days
- Genuine products onlyNo copies, no substitutes without your approval.
- Itemised quotationsClear prices, lead times and terms for every line.
- Engineer-checkedWe confirm the right part for your application.
- Delivery across PakistanDispatched to your plant, wherever it is.
About the SICK WF Fork Sensors

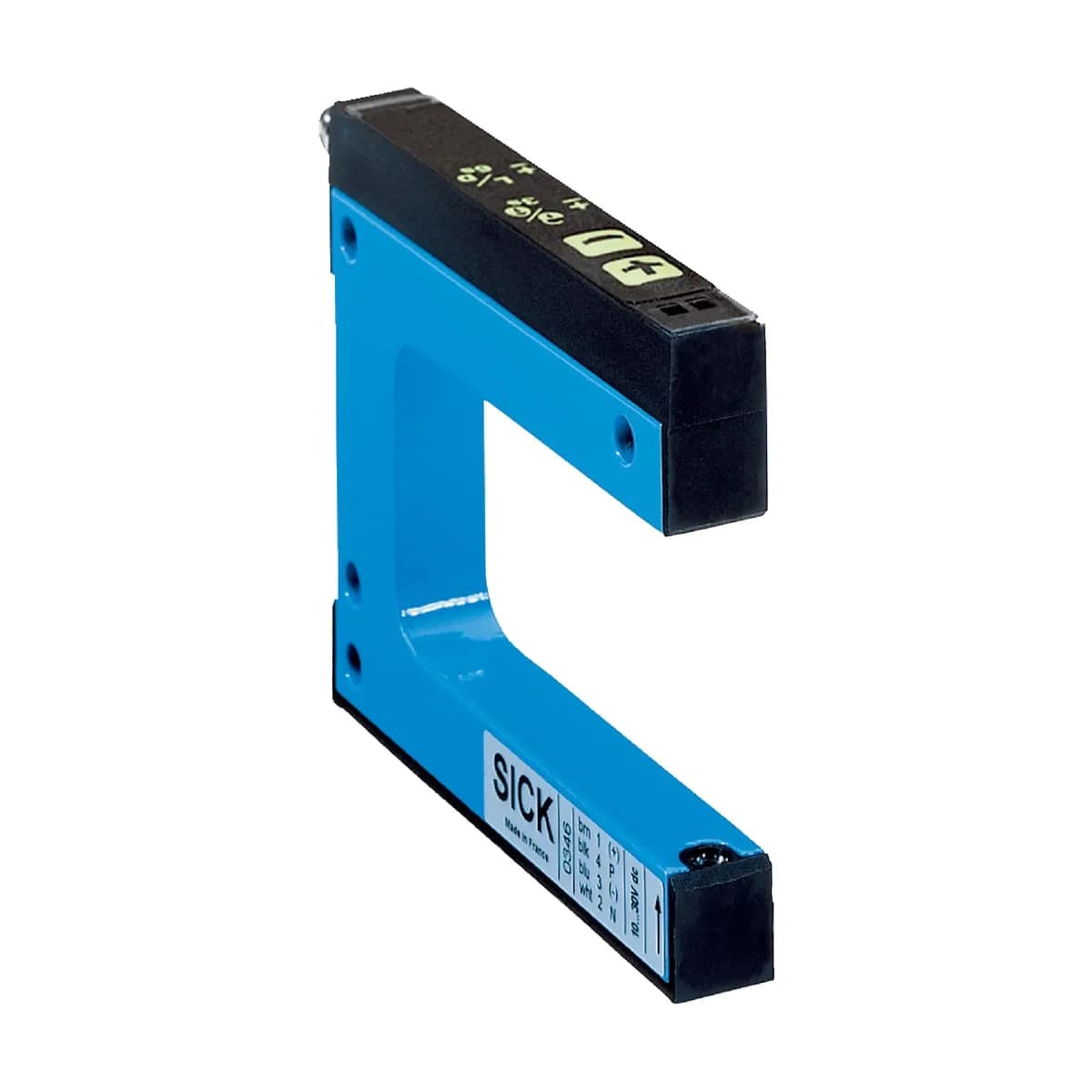

A fork sensor is a through-beam sensor with the sender and receiver built into the two arms of one housing, so there is nothing to align. It is the standard way to detect label gaps on labelling machines and small parts passing through a guide.
SICK WF sensors come in fork widths from 2 mm (for labels on a backing web) up to 180 mm (for larger parts). WFS types are made specifically for label detection, including transparent labels; WF types with plus/minus buttons suit general detection; WFE types are the economical choice with potentiometer setting.
Pick the fork width to suit the material, and the fork depth to reach far enough into the web. We supply WF sensors as replacements on labelling machines and for new label applicators — send the type code or the fork dimensions and we match it.
Range at a glance
- Fork widths
- 2, 3, 5, 15, 30, 50, 80, 120, 180 mm
- Light
- Infrared or visible red
- Adjustment
- Teach-in, plus/minus buttons or potentiometer
- Outputs
- PNP/NPN
- Typical use
- Label gaps, small parts, edges
SICK WF Fork Sensors part numbers
The codes our customers ask for most. Add the ones you need to your quote list — or send any other WF Fork Sensors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| WFS3-40P415Order no. 6043919 | Fork sensor, fork width 3 mm, depth 42 mm, infrared light, plus/minus button, cable | 3 mm fork · PNP | |
| WFE-030040B337Order no. 1106553 | Fork sensor, fork width 30 mm, depth 40 mm, visible red light, potentiometer, light/dark switching | 30 mm fork · push-pull PNP/NPN | |
| WF80-60B410Order no. 6028441 | Fork sensor, fork width 80 mm, depth 59 mm, infrared light, plus/minus button | 80 mm fork · PNP/NPN | |
| WF30-40B416Order no. 6028453 | Fork sensor, fork width 30 mm, depth 42 mm, infrared light, plus/minus button | 30 mm fork · PNP/NPN | |
| WF80-40B410Order no. 6028433 | Fork sensor, fork width 80 mm, depth 42 mm, infrared light, plus/minus button | 80 mm fork · PNP/NPN | |
| WF2-40B410Order no. 6028428 | Fork sensor, fork width 2 mm, depth 42 mm, infrared light, plus/minus button | 2 mm fork · PNP/NPN | |
| WFE-180120B337Order no. 1106558 | Fork sensor, fork width 180 mm, depth 120 mm, visible red light, potentiometer, light/dark switching | 180 mm fork · push-pull PNP/NPN | |
| WFS3-40B41CA00Order no. 6058649 | Fork sensor, fork width 3 mm, depth 42 mm, infrared light, teach-in button, cable | 3 mm fork · push-pull PNP/NPN | |
| WF15-60B410Order no. 6028438 | Fork sensor, fork width 15 mm, depth 59 mm, infrared light, plus/minus button | 15 mm fork · PNP/NPN | |
| WF15-40B416Order no. 6028452 | Fork sensor, fork width 15 mm, depth 42 mm, infrared light, plus/minus button | 15 mm fork · PNP/NPN |
Not sure of the part number?
Send a photo of the SICK part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
SICK WF Fork Sensors price in Pakistan
SICK WF Fork Sensors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Where the WF Fork Sensors is used
Label applicators
Detecting the gap between labels on the backing web.
Small-part detection
Counting caps, screws and components through a guide.
Edge and web detection
Checking web presence and edge position on converting machines.
Industries that run on it
Engineering support for the WF Fork Sensors
More from SICK
Other SICK ranges
- 12 part numbers
10 part numbersG6 Small Photoelectric Sensors
SICK G6 small photoelectric sensors, led by the GL6 retro-reflective range: 6 m sensing with a reflector (12 m on GL6L), PNP or NPN, M8 connector or cable — a low-cost standard for conveyors.
- GL6
- GL6G
- GL6L
- G6
10 part numbersW12 Photoelectric Sensors
SICK W12 photoelectric sensors in a robust metal housing: background-suppression (WTB12), foreground-suppression (WTF12), retro-reflective (WL12) and through-beam versions for demanding production lines.
- W12
- WTB12
- WTF12
- WL12
8 part numbersKTS Contrast Sensors
SICK KTS contrast sensors detect print marks and register marks on film, labels and packaging at high speed — used on flow wrappers, label machines and form-fill-seal machines.
- KTS
- KTS-WB
- KTX
8 part numbersMZT8 Magnetic Cylinder Sensors
SICK MZT8 magnetic cylinder sensors for T-slot pneumatic cylinders: drop-in mounting, NO or NC outputs, M8/M12 pigtail or open cable connection.
- MZT8
- MZT8-03VPS
10 part numbersDFS60 Incremental Encoders
SICK DFS60 incremental encoders: 60 mm housing, solid, blind-hollow and through-hollow shafts, TTL/HTL outputs and up to 65,536 pulses — programmable versions cover many resolutions with one part.
- DFS60
- DFS60B
- DFS60E
- DFS60I
FAQs
Frequently asked questions
Which fork width do I need for label detection?
For labels on a backing web, a narrow fork (2–5 mm) such as a WFS3 is standard. Choose the fork depth so the beam reaches the label area of the web.
Can WF sensors detect transparent labels?
The WFS label sensors are designed for this; standard infrared forks may not. Tell us the label material and we recommend the right type.
What is the price of SICK WF Fork Sensors in Pakistan?
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
My SICK part number is not in the table. Can you offer it?
The table shows the codes we are asked for most; we offer the other WF Fork Sensors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Are these genuine SICK products?
Yes. We offer genuine SICK products only — no copies, and no substitutes without your approval.
