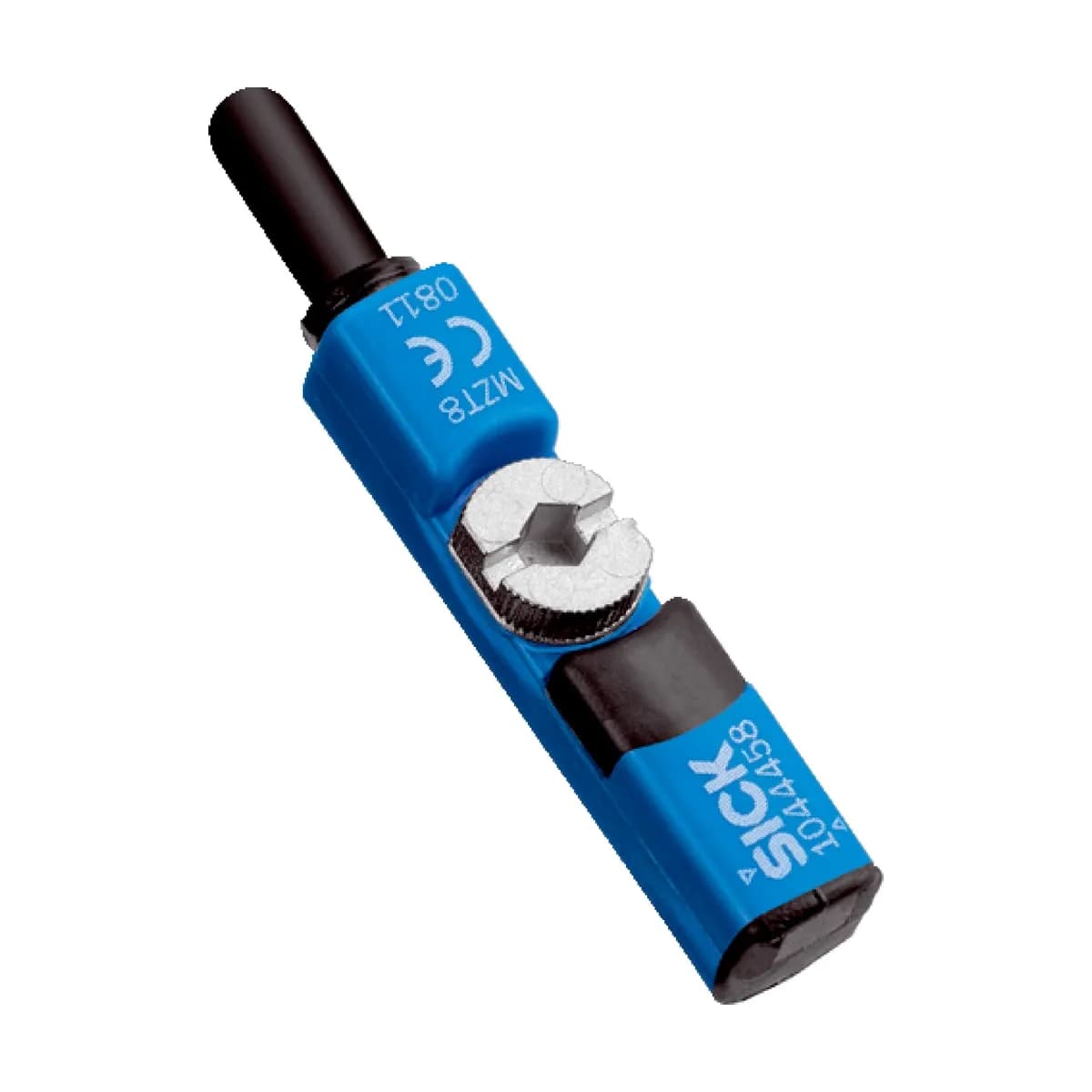

SICKSICK MZT8 Magnetic Cylinder Sensors
T-slot cylinder sensors for piston position detection on pneumatic cylinders.
- MZT8
- MZT8-03VPS
- Fits T-slot pneumatic cylinders
- Drops into the slot from above
- PNP, NO or NC
- M8 or M12 pigtail, or open cable
- LED switching indicator
Price on request — quoted per part number
Quotes within 24 hours on working days
- Genuine products onlyNo copies, no substitutes without your approval.
- Itemised quotationsClear prices, lead times and terms for every line.
- Engineer-checkedWe confirm the right part for your application.
- Delivery across PakistanDispatched to your plant, wherever it is.
About the SICK MZT8 Magnetic Cylinder Sensors
Magnetic cylinder sensors detect the magnet in a pneumatic cylinder's piston through the cylinder wall, telling the PLC when the cylinder has reached its end position. The SICK MZT8 fits the T-slot found on most modern cylinders and drops into the slot from above, so it can be fitted without removing the cylinder or its brackets.
The standard versions switch a PNP output and come with a short cable and M8 or M12 plug, or with an open cable for direct wiring. Their small size suits compact and short-stroke cylinders, and the LED makes position setting easy during commissioning.
Cylinder sensors are frequent spares on packing and handling machines. We supply MZT8 sensors in the common connection versions and can advise on sensors for C-slot and tie-rod cylinders too.
Range at a glance
- Mounting
- T-slot, drop-in
- Output
- PNP, NO or NC, DC 3-wire
- Connection
- 0.3 m cable with M8/M12 plug, or 2–10 m open cable
- Indicator
- LED
- Typical use
- Cylinder end-position detection
SICK MZT8 Magnetic Cylinder Sensors part numbers
The codes our customers ask for most. Add the ones you need to your quote list — or send any other MZT8 Magnetic Cylinder Sensors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| MZT8-03VPS-KP0Order no. 1044458 | T-slot cylinder sensor, NO, M8 3-pin plug on 0.3 m cable | DC 3-wire · NO | |
| MZT8-03VPS-KRXOrder no. 1073406 | T-slot cylinder sensor, NO, M8 3-pin knurled plug on 0.3 m cable | DC 3-wire · NO | |
| MZT8-03VPS-KRDS12Order no. 1067400 | T-slot cylinder sensor, NO, M8 3-pin knurled plug on 0.3 m cable | DC 3-wire · NO | |
| MZT8-03VPS-KWBOrder no. 1048314 | T-slot cylinder sensor, NO, open cable with ferrules, 5 m cable | DC 3-wire · NO | |
| MZT8-03VPS-KRDS04Order no. 1048502 | T-slot cylinder sensor, NO, M8 3-pin knurled plug on 0.3 m cable | DC 3-wire · NO | |
| MZT8-2V8PS-KPDS26Order no. 1089849 | T-slot cylinder sensor, NO, M8 3-pin plug on 0.1 m cable | DC 3-wire · NO | |
| MZT8-03VPO-KP0Order no. 1044930 | T-slot cylinder sensor, NC, M8 3-pin plug on 0.3 m cable | DC 3-wire · NC | |
| MZT8-03VPS-KUDOrder no. 1054051 | T-slot cylinder sensor, NO, open cable with ferrules, 10 m cable | DC 3-wire · NO |
Not sure of the part number?
Send a photo of the SICK part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
SICK MZT8 Magnetic Cylinder Sensors price in Pakistan
SICK MZT8 Magnetic Cylinder Sensors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Where the MZT8 Magnetic Cylinder Sensors is used
Pneumatic cylinders
End-position feedback on pushers, clamps, grippers and stoppers.
Packing machines
Carton erectors, case packers and palletisers.
Handling and assembly
Pick-and-place units and fixtures.
Industries that run on it
Engineering support for the MZT8 Magnetic Cylinder Sensors
More from SICK
Other SICK ranges
- 12 part numbers
10 part numbersG6 Small Photoelectric Sensors
SICK G6 small photoelectric sensors, led by the GL6 retro-reflective range: 6 m sensing with a reflector (12 m on GL6L), PNP or NPN, M8 connector or cable — a low-cost standard for conveyors.
- GL6
- GL6G
- GL6L
- G6
10 part numbersW12 Photoelectric Sensors
SICK W12 photoelectric sensors in a robust metal housing: background-suppression (WTB12), foreground-suppression (WTF12), retro-reflective (WL12) and through-beam versions for demanding production lines.
- W12
- WTB12
- WTF12
- WL12
8 part numbersKTS Contrast Sensors
SICK KTS contrast sensors detect print marks and register marks on film, labels and packaging at high speed — used on flow wrappers, label machines and form-fill-seal machines.
- KTS
- KTS-WB
- KTX
10 part numbersWF Fork Sensors
SICK WF, WFS and WFE fork sensors for label-gap detection and small-part detection, with fork widths from 2 mm to 180 mm and pre-aligned sender and receiver in one housing.
- WF
- WFS
- WFE
10 part numbersDFS60 Incremental Encoders
SICK DFS60 incremental encoders: 60 mm housing, solid, blind-hollow and through-hollow shafts, TTL/HTL outputs and up to 65,536 pulses — programmable versions cover many resolutions with one part.
- DFS60
- DFS60B
- DFS60E
- DFS60I
FAQs
Frequently asked questions
Will an MZT8 fit my cylinder?
MZT8 sensors fit T-slot cylinders. For C-slot, round or tie-rod cylinders, a different sensor or an adapter is needed — send the cylinder make and model and we check.
What is the difference between KP0 and KWB versions?
The ending gives the connection: KP0 is a short cable with an M8 plug, while KWB and similar endings have an open cable for direct wiring.
What is the price of SICK MZT8 Magnetic Cylinder Sensors in Pakistan?
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
My SICK part number is not in the table. Can you offer it?
The table shows the codes we are asked for most; we offer the other MZT8 Magnetic Cylinder Sensors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Are these genuine SICK products?
Yes. We offer genuine SICK products only — no copies, and no substitutes without your approval.
