SICKSICK DFS60 Incremental Encoders
60 mm incremental encoders with solid or hollow shafts and programmable pulse counts.
- DFS60
- DFS60B
- DFS60E
- DFS60I
- 60 mm housing, solid or hollow shaft
- TTL/RS-422 or HTL push-pull outputs
- Programmable pulses on B and I versions
- Up to 65,536 pulses per revolution
- M12/M23 connector or cable
Price on request — quoted per part number
Quotes within 24 hours on working days
- Genuine products onlyNo copies, no substitutes without your approval.
- Itemised quotationsClear prices, lead times and terms for every line.
- Engineer-checkedWe confirm the right part for your application.
- Delivery across PakistanDispatched to your plant, wherever it is.

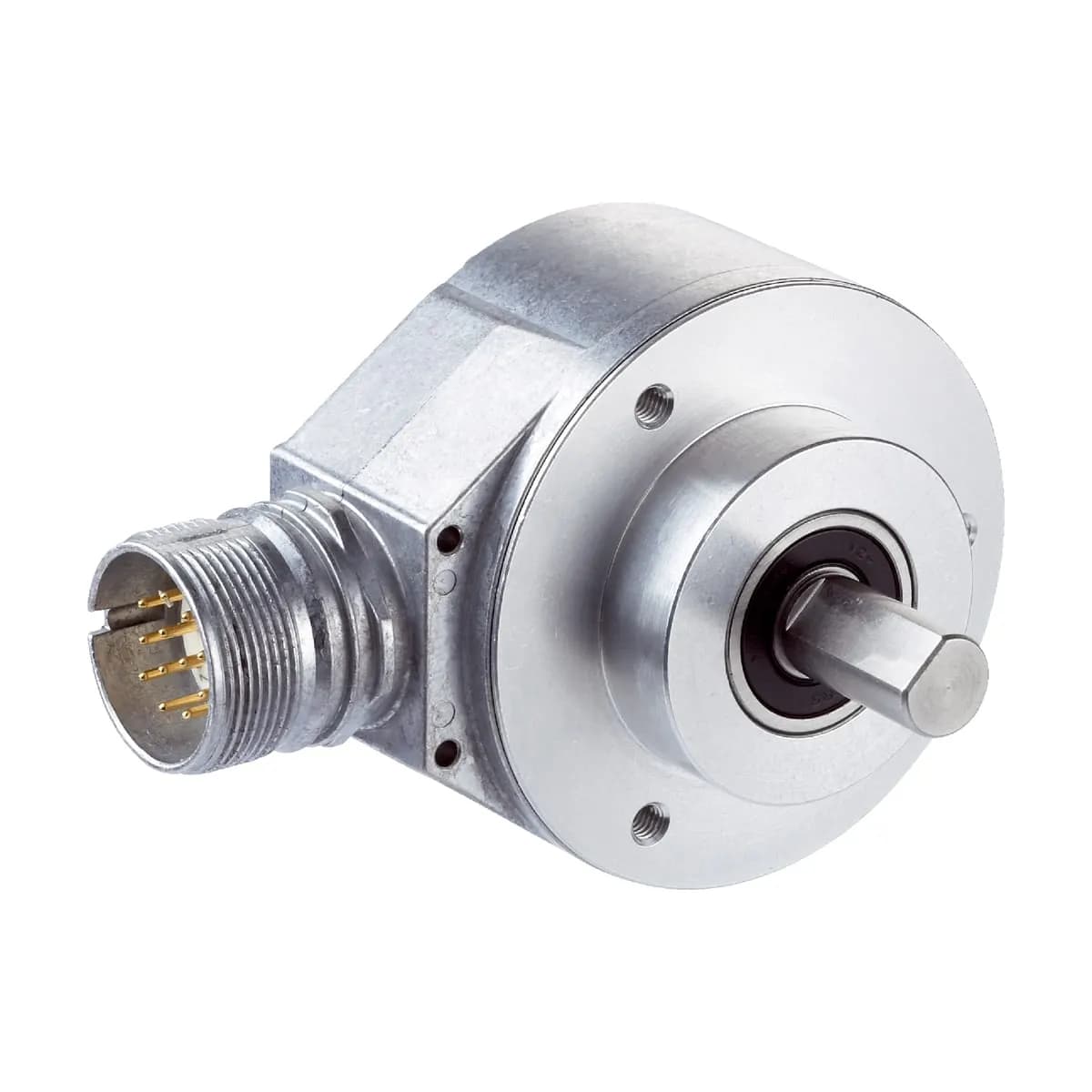

About the SICK DFS60 Incremental Encoders
Incremental encoders turn shaft rotation into pulses so a PLC or drive can measure speed, length and position. The SICK DFS60 is a 60 mm industrial encoder used on conveyors, cutting machines, winders and motors, with a wide choice of shafts and flanges to fit existing mechanics.
The type code shows the mechanics and electronics: S4 is a 10 mm solid shaft with face-mount flange, BD a blind hollow shaft, TE/TJ a through hollow shaft; E versions have HTL push-pull outputs, while programmable B/I versions (…PA/PC) let you set the pulses per revolution and output level yourself. That makes a programmable DFS60 a practical single spare for several machines.
We supply DFS60 encoders, couplings and cables. Send the old encoder's type code, or its shaft size, pulses and output type, and we match it.
Range at a glance
- Housing
- Ø 60 mm
- Shafts
- 10 mm solid; 10 mm blind hollow; 12 mm or 5/8" through hollow
- Resolution
- Up to 65,536 pulses per revolution
- Interfaces
- TTL/RS-422, HTL push-pull, programmable
- Supply
- 4.5–32 V or 10–32 V DC
SICK DFS60 Incremental Encoders part numbers
The codes our customers ask for most. Add the ones you need to your quote list — or send any other DFS60 Incremental Encoders variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| DFS60B-S4PA10000Order no. 1036720 | Incremental encoder, 10 mm solid shaft, face-mount flange, 4.5–32 V, TTL, HTL, programmable pulses | 10,000 ppr | |
| DFS60S-TJOC01024Order no. 1079319 | Incremental encoder, 5/8" through hollow shaft, 4.5–32 V, Sin/Cos, non programmable | 1024 periods (sin/cos) | |
| DFS60B-S4PC10000Order no. 1036721 | Incremental encoder, 10 mm solid shaft, face-mount flange, 4.5–32 V, TTL, HTL, programmable pulses | 10,000 ppr | |
| DFS60I-BDPC65536Order no. 1083944 | Incremental encoder, 10 mm blind hollow shaft, 4.5–32 V, TTL, HTL, programmable pulses | 65,536 ppr | |
| DFS60B-S4EA00512Order no. 1037267 | Incremental encoder, 10 mm solid shaft, face-mount flange, 10–32 V, HTL, push-pull | 512 ppr | |
| DFS60B-S4EA00002Order no. 1038861 | Incremental encoder, 10 mm solid shaft, face-mount flange, 10–32 V, HTL, push-pull | 2 ppr | |
| DFS60B-BDPC10000Order no. 1036775 | Incremental encoder, 10 mm blind hollow shaft, 4.5–32 V, TTL, HTL, programmable pulses | 10,000 ppr | |
| DFS60B-TEEM10000Order no. 1068559 | Incremental encoder, 12 mm through hollow shaft, 10–32 V, HTL, push-pull | 10,000 ppr | |
| DFS60E-S4CA00360Order no. 1076252 | Incremental encoder, 10 mm solid shaft, face-mount flange, 10–32 V, TTL, RS-422 | 360 ppr | |
| DFS60E-S4EL00500Order no. 1051591 | Incremental encoder, 10 mm solid shaft, face-mount flange, 10–32 V, HTL, push-pull | 500 ppr |
Not sure of the part number?
Send a photo of the SICK part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
SICK DFS60 Incremental Encoders price in Pakistan
SICK DFS60 Incremental Encoders prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Where the DFS60 Incremental Encoders is used
Length measurement
Cut-to-length on film, paper, cable and textile lines.
Speed feedback
Closed-loop speed control of motors and conveyors.
Positioning
Position tracking on indexing tables and handling systems.
Industries that run on it
Engineering support for the DFS60 Incremental Encoders
More from SICK
Other SICK ranges
- 12 part numbers
10 part numbersG6 Small Photoelectric Sensors
SICK G6 small photoelectric sensors, led by the GL6 retro-reflective range: 6 m sensing with a reflector (12 m on GL6L), PNP or NPN, M8 connector or cable — a low-cost standard for conveyors.
- GL6
- GL6G
- GL6L
- G6
10 part numbersW12 Photoelectric Sensors
SICK W12 photoelectric sensors in a robust metal housing: background-suppression (WTB12), foreground-suppression (WTF12), retro-reflective (WL12) and through-beam versions for demanding production lines.
- W12
- WTB12
- WTF12
- WL12
8 part numbersKTS Contrast Sensors
SICK KTS contrast sensors detect print marks and register marks on film, labels and packaging at high speed — used on flow wrappers, label machines and form-fill-seal machines.
- KTS
- KTS-WB
- KTX
10 part numbersWF Fork Sensors
SICK WF, WFS and WFE fork sensors for label-gap detection and small-part detection, with fork widths from 2 mm to 180 mm and pre-aligned sender and receiver in one housing.
- WF
- WFS
- WFE
8 part numbersMZT8 Magnetic Cylinder Sensors
SICK MZT8 magnetic cylinder sensors for T-slot pneumatic cylinders: drop-in mounting, NO or NC outputs, M8/M12 pigtail or open cable connection.
- MZT8
- MZT8-03VPS
FAQs
Frequently asked questions
What is a programmable DFS60?
Programmable versions (for example DFS60B-S4PA10000) let you set the pulses per revolution and output type with a programming tool, so one part can replace encoders with different resolutions.
What information do you need to replace an encoder?
The type code from the label is best. Otherwise send the shaft type and size, pulses per revolution, output type (TTL or HTL), supply voltage and connection.
What is the price of SICK DFS60 Incremental Encoders in Pakistan?
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
My SICK part number is not in the table. Can you offer it?
The table shows the codes we are asked for most; we offer the other DFS60 Incremental Encoders variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Are these genuine SICK products?
Yes. We offer genuine SICK products only — no copies, and no substitutes without your approval.
