Pepperl+FuchsPepperl+Fuchs R100 Series Photoelectric Sensors
Miniature photoelectric sensors with background suppression, retro-reflective, diffuse and thru-beam versions.
- R100
- OBT
- OBD
- OBR
- OBE
- OMT
- One miniature housing for all principles
- Background suppression, diffuse, retro-reflective, thru-beam
- IO-Link on every sensor
- Push-pull outputs (PNP/NPN)
- M8 connector or cable
Price on request — quoted per part number
Quotes within 24 hours on working days
- Genuine products onlyNo copies, no substitutes without your approval.
- Itemised quotationsClear prices, lead times and terms for every line.
- Engineer-checkedWe confirm the right part for your application.
- Delivery across PakistanDispatched to your plant, wherever it is.

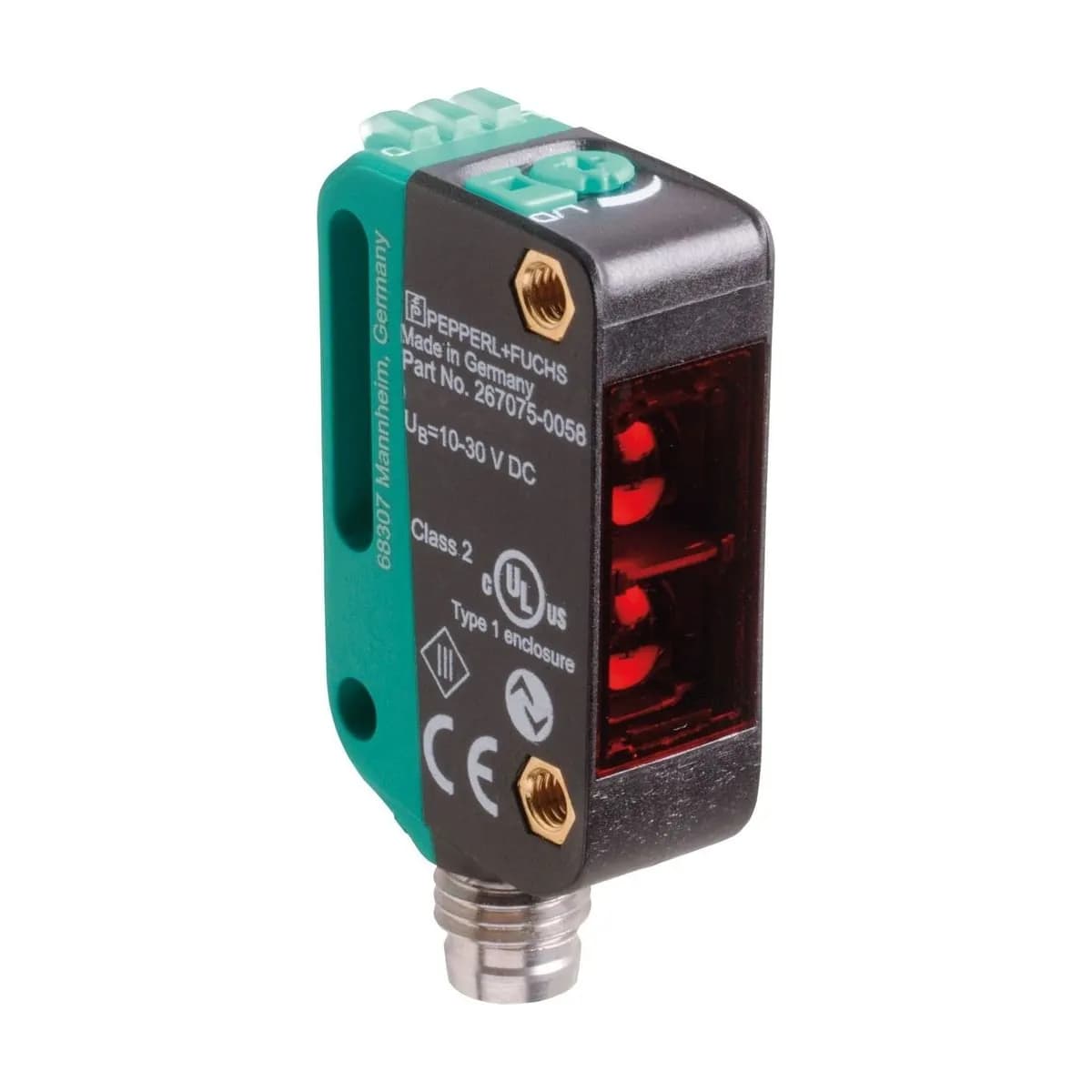

About the Pepperl+Fuchs R100 Series Photoelectric Sensors
The R100 series packs a full range of photoelectric sensing principles into one miniature housing, so a machine can use the same mounting and wiring for every detection task. Background-suppression sensors (OBT) detect objects at a set distance regardless of colour; diffuse sensors (OBD) switch on light reflected from the object; retro-reflective sensors (OBR) work with a reflector; and thru-beam pairs (OBE) give the longest range.
Every R100 sensor has IO-Link for parameter setting and diagnostics, and push-pull outputs that work with PNP or NPN inputs. Versions ending in -L use a laser-class red light spot for small objects, and -V31 versions have an M8 connector.
We supply R100 sensors for new machines and as replacements on packaging and assembly lines. Send the type code or describe the detection task and distance, and we match the right version.
Range at a glance
- Principles
- Background suppression, diffuse, distance, retro-reflective, thru-beam
- Ranges
- 100 mm to 20 m depending on type
- Interface
- IO-Link
- Outputs
- 2 push-pull outputs (2EP)
- Connection
- M8 4-pin (V31) or cable
Pepperl+Fuchs R100 Series Photoelectric Sensors part numbers
The codes our customers ask for most. Add the ones you need to your quote list — or send any other R100 Series Photoelectric Sensors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| OBT100-R100-2EP-IO-V31-L | Background-suppression sensor, 100 mm, laser red light, IO-Link, M8 | 100 mm · BGS | |
| OBT100-R100-2EP-IO-L | Background-suppression sensor, 100 mm, laser red light, IO-Link, cable | 100 mm · BGS | |
| OBT300-R100-2EP-IO-V31-L | Background-suppression sensor, 300 mm, laser red light, IO-Link, M8 | 300 mm · BGS | |
| OBD1000-R100-2EP-IO-V31 | Diffuse-mode sensor, 1,000 mm, IO-Link, M8 | 1 m · diffuse | |
| OMT100-R100-2EP-IO-V31-L | Distance sensor, 100 mm, laser red light, IO-Link, M8 | 100 mm · distance | |
| OBR7500-R100-2EP-IO-V31 | Retro-reflective sensor, 7.5 m, IO-Link, M8 | 7.5 m · retro | |
| OBE20M-R100-S2EP-IO-V31-L | Thru-beam sensor pair, 20 m, laser red light, IO-Link, M8 | 20 m · thru-beam |
Not sure of the part number?
Send a photo of the Pepperl+Fuchs part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Pepperl+Fuchs R100 Series Photoelectric Sensors price in Pakistan
Pepperl+Fuchs R100 Series Photoelectric Sensors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Where the R100 Series Photoelectric Sensors is used
Packaging lines
Detecting cartons, pouches and bottles of any colour.
Small-part detection
Laser versions for small components and edges.
Assembly machines
Presence and position checks in tight spaces.
Industries that run on it
Engineering support for the R100 Series Photoelectric Sensors
More from Pepperl+Fuchs
Other Pepperl+Fuchs ranges
- 12 part numbers
12 part numbersK-System Isolated Barriers
Pepperl+Fuchs K-System isolated barriers (KCD2, KFD2, KFA6) for intrinsically safe circuits: switch amplifiers, SMART transmitter power supplies, current drivers and temperature converters up to SIL 2.
- K-System
- KCD2
- KFD2
- KFA6
8 part numbersRectangular Inductive Sensors
Pepperl+Fuchs rectangular inductive sensors: compact F-series blocks and VariKont L2/U1 housings with sensing ranges up to 40 mm and a rotatable sensing head.
- VariKont
- NBN40-L2
- NBN40-U1
- F10
8 part numbersCapacitive Sensors
Pepperl+Fuchs capacitive sensors in M12, M18 and M30 housings and rectangular blocks, for detecting liquids, powders, granules and plastic or glass parts — often through a container wall.
- CBB
- CBN
- CCB
- CCN
10 part numbersUltrasonic Sensors
Pepperl+Fuchs ultrasonic sensors (UB and UC series) in M18 and M30 housings with switching or analog outputs and ranges up to 6 m — for tank level, distance and transparent objects.
- UB
- UC
- 18GM
- 30GM
FAQs
Frequently asked questions
Do I need IO-Link to use an R100 sensor?
No. The sensors work as standard switching sensors; IO-Link is optional for setting parameters and reading diagnostics from the PLC.
What do -V31 and -L mean?
-V31 is an M8 4-pin connector and -L marks a version with a laser-class red light spot for small objects.
What is the price of Pepperl+Fuchs R100 Series Photoelectric Sensors in Pakistan?
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
My Pepperl+Fuchs part number is not in the table. Can you offer it?
The table shows the codes we are asked for most; we offer the other R100 Series Photoelectric Sensors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Are these genuine Pepperl+Fuchs products?
Yes. We offer genuine Pepperl+Fuchs products only — no copies, and no substitutes without your approval.
