12 part numbersCylindrical Inductive Sensors
Pepperl+Fuchs cylindrical inductive sensors (NBB/NBN) in M8, M12, M18 and M30 housings: flush and non-flush, PNP and NPN, cable or M12 connector — rugged sensors for metal detection.
- NBB
- NBN
- GM50
- E2-V1
Pepperl+FuchsPepperl+Fuchs Capacitive Sensors
Level and presence detection of liquids, powders, granules and non-metal objects.
- CBB
- CBN
- CCB
- CCN
- CJ
- Detects liquids, powders, granules and non-metal parts
- Adjustable sensitivity to ignore container walls
- M12, M18, M30 and rectangular housings
- PNP normally-open outputs
- M12 connector versions
Price on request — quoted per part number
Quotes within 24 hours on working days
- Genuine products onlyNo copies, no substitutes without your approval.
- Itemised quotationsClear prices, lead times and terms for every line.
- Engineer-checkedWe confirm the right part for your application.
- Delivery across PakistanDispatched to your plant, wherever it is.
About the Pepperl+Fuchs Capacitive Sensors
Capacitive sensors detect almost any material — liquid, powder, granules, wood, plastic, glass — not just metal. That makes them the standard choice for level detection in hoppers, silos and tanks, and for checking fill levels through a plastic or glass wall.
Most Pepperl+Fuchs capacitive sensors have a sensitivity potentiometer, so the sensor can be adjusted to ignore the container wall and react only to the product behind it. Flush-mount types (CBB, CCB) sit level with the mounting surface; non-flush types (CBN, CCN) reach further and are preferred for bulk materials.
We supply capacitive sensors in the common thread sizes and in rectangular housings for flat mounting. Tell us the material to be detected, the wall material and thickness, and we recommend the right sensor and setting.
Range at a glance
- Housings
- M12, M18, M30, rectangular F46
- Sensing range
- 4 mm to 15 mm (adjustable)
- Supply
- 10–30 V DC (AC 2-wire versions available)
- Output
- PNP normally open (E2)
- Connection
- M12 connector or cable
Pepperl+Fuchs Capacitive Sensors part numbers
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Capacitive Sensors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| CBB4-12GH60-E2-V1 | M12 capacitive sensor, 4 mm flush, PNP NO, M12 | M12 · 4 mm | |
| CBB8-18GS75-E2-V1 | M18 capacitive sensor, 8 mm flush, PNP NO, potentiometer, M12 | M18 · 8 mm | |
| CBN15-18GS75-E2-V1 | M18 capacitive sensor, 15 mm non-flush, PNP NO, potentiometer, M12 | M18 · 15 mm | |
| CCB10-30GS60-E2-V1 | M30 capacitive sensor, 10 mm flush, PNP NO, M12 | M30 · 10 mm | |
| CCN15-30GS60-E2-V1 | M30 capacitive sensor, 15 mm non-flush, PNP NO, M12 | M30 · 15 mm | |
| CBN5-F46-E2 | Rectangular capacitive sensor, 5 mm non-flush, PNP NO, cable | 5 mm | |
| CBN10-F46-E2 | Rectangular capacitive sensor, 10 mm non-flush, PNP NO, cable | 10 mm | |

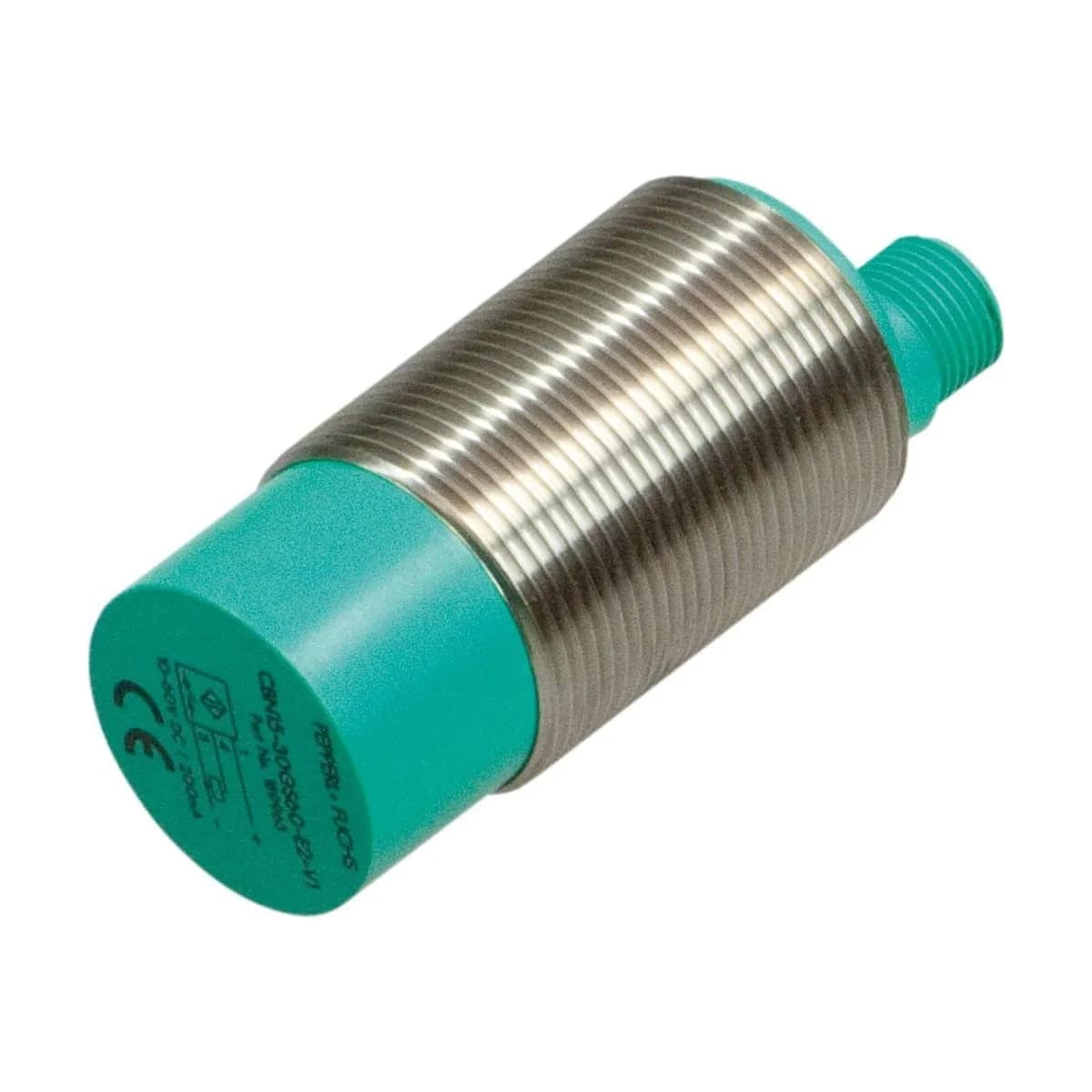

| CJ10-30GM-WS | M30 capacitive sensor, 10 mm non-flush, AC 2-wire NO | M30 · AC 2-wire |
Not sure of the part number?
Send a photo of the Pepperl+Fuchs part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Pepperl+Fuchs Capacitive Sensors price in Pakistan
Pepperl+Fuchs Capacitive Sensors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Where the Capacitive Sensors is used
Hopper and silo level
High and low level detection of granules, powders and grain.
Tank and bottle level
Liquid level through plastic or glass walls.
Non-metal parts
Presence of cartons, plastic parts and wooden pallets.
Industries that run on it
Plastics & Chemicals
Robust instrumentation, drives and safety systems for demanding processes.
Explore
Food & Beverage
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
Bottled Water
RO and mineral-water plants with filling-line coding and automation.
Explore
Dairy
Process control, coding and water treatment for milk and dairy plants.
Explore
Engineering support for the Capacitive Sensors
More from Pepperl+Fuchs
Other Pepperl+Fuchs ranges
- 12 part numbers
12 part numbersK-System Isolated Barriers
Pepperl+Fuchs K-System isolated barriers (KCD2, KFD2, KFA6) for intrinsically safe circuits: switch amplifiers, SMART transmitter power supplies, current drivers and temperature converters up to SIL 2.
- K-System
- KCD2
- KFD2
- KFA6
8 part numbersRectangular Inductive Sensors
Pepperl+Fuchs rectangular inductive sensors: compact F-series blocks and VariKont L2/U1 housings with sensing ranges up to 40 mm and a rotatable sensing head.
- VariKont
- NBN40-L2
- NBN40-U1
- F10
7 part numbersR100 Series Photoelectric Sensors

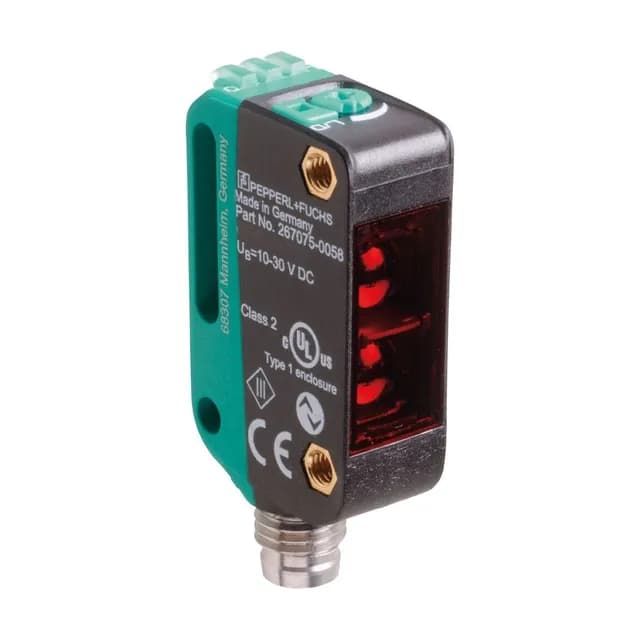

Pepperl+Fuchs R100 series miniature photoelectric sensors: background-suppression, diffuse, distance, retro-reflective and thru-beam types in one small housing with IO-Link.
- R100
- OBT
- OBD
- OBR
10 part numbersUltrasonic Sensors

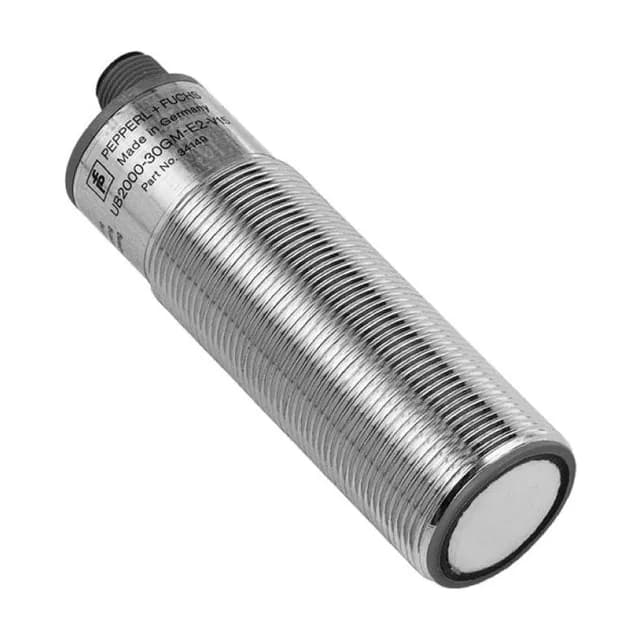

Pepperl+Fuchs ultrasonic sensors (UB and UC series) in M18 and M30 housings with switching or analog outputs and ranges up to 6 m — for tank level, distance and transparent objects.
- UB
- UC
- 18GM
- 30GM
FAQs
Frequently asked questions
Can a capacitive sensor detect water through a plastic tank?
Yes, if the wall is non-metallic and not too thick. Adjust the sensitivity so the sensor ignores the empty wall and switches when the liquid is behind it.
Capacitive or inductive — which do I need?
Inductive sensors detect only metal. Capacitive sensors detect almost any material, so they are used for liquids, powders and non-metal parts.
What is the price of Pepperl+Fuchs Capacitive Sensors in Pakistan?
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
My Pepperl+Fuchs part number is not in the table. Can you offer it?
The table shows the codes we are asked for most; we offer the other Capacitive Sensors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Are these genuine Pepperl+Fuchs products?
Yes. We offer genuine Pepperl+Fuchs products only — no copies, and no substitutes without your approval.
Talk to an engineer
Request a Pepperl+Fuchs Capacitive Sensors quotation
Send the part numbers and quantities, a BOM or a nameplate photo. We check availability and reply with an itemised quotation.
Quotes within 24 hours on working days
