Pepperl+FuchsM8 to M30 inductive proximity sensors with extended temperature range and M12 connectors.
Price on request — quoted per part number
Quotes within 24 hours on working days
Pepperl+Fuchs inductive sensors are known on the factory floor for their green-capped threaded housings and long service life. The NBB (flush) and NBN (non-flush) cylindrical ranges detect metal targets without contact and cover the usual thread sizes from M8 to M30.
The type code is simple to read: in NBB8-18GM50-E2-V1, NBB means flush mounting, 8 is the sensing range in millimetres, 18GM50 is an M18 metal housing 50 mm long, E2 is a PNP normally-open output (E0 is NPN) and V1 is an M12 connector. Codes without -V1 have a fixed cable.
The current generation has an extended temperature range and a brass housing with a durable coating, so the same sensor works in cold stores, hot dryers and wash-down areas. We supply these sensors as replacements and for new machines — send the code from the old sensor and we match it exactly.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Cylindrical Inductive Sensors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|

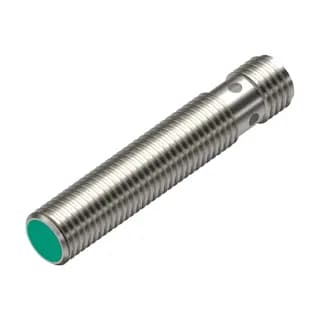

| NBB2-8GM30-E2-V1 | M8 inductive sensor, 2 mm flush, PNP NO, M12 connector | M8 · 2 mm | |
| NBB2-8GM40-E2-V1 | M8 inductive sensor, 2 mm flush, PNP NO, 40 mm housing, M12 connector | M8 · 2 mm | |
| NBB4-12GM50-E2-V1 | M12 inductive sensor, 4 mm flush, PNP NO, M12 connector | M12 · 4 mm · PNP | |
| NBB4-12GM50-E0-V1 | M12 inductive sensor, 4 mm flush, NPN NO, M12 connector | M12 · 4 mm · NPN | |
| NBB4-12GM50-E2 | M12 inductive sensor, 4 mm flush, PNP NO, cable | M12 · 4 mm · cable | |
| NBN8-12GM50-E2-V1 | M12 inductive sensor, 8 mm non-flush, PNP NO, M12 connector | M12 · 8 mm | |

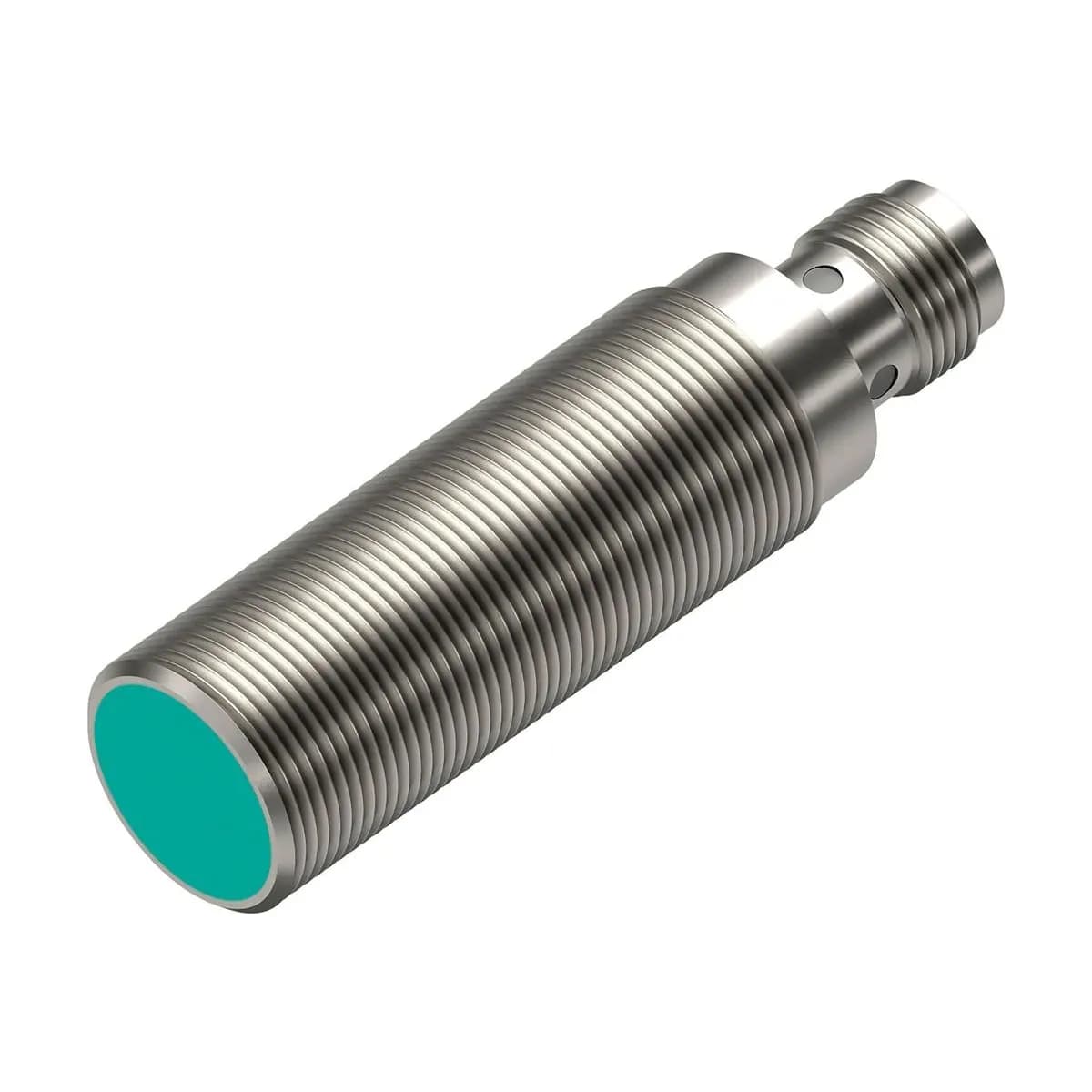

| NBB8-18GM50-E2-V1 | M18 inductive sensor, 8 mm flush, PNP NO, M12 connector | M18 · 8 mm · PNP | |
| NBB8-18GM50-E0-V1 | M18 inductive sensor, 8 mm flush, NPN NO, M12 connector | M18 · 8 mm · NPN | |
| NBB8-18GM50-E2 | M18 inductive sensor, 8 mm flush, PNP NO, cable | M18 · 8 mm · cable | |
| NBN12-18GM50-E2-V1 | M18 inductive sensor, 12 mm non-flush, PNP NO, M12 connector | M18 · 12 mm | |
| NBB15-30GM50-E2-V1 | M30 inductive sensor, 15 mm flush, PNP NO, M12 connector | M30 · 15 mm | |
| NBN15-30GM50-E2-V1 | M30 inductive sensor, 15 mm non-flush, PNP NO, M12 connector | M30 · 15 mm |
Send a photo of the Pepperl+Fuchs part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Pepperl+Fuchs Cylindrical Inductive Sensors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
End positions, cams, index tables and moving machine parts.
Speed and standstill monitoring from sprocket teeth or shaft targets.
Wash-down areas, cold stores and hot process zones.
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
Process control, coding and water treatment for milk and dairy plants.
Explore
Coding, labeling and end-of-line automation for faster, error-free packing.
Explore
Drives, controls and energy savings for spinning, weaving and processing mills.
ExploreMore from Pepperl+Fuchs
12 part numbersPepperl+Fuchs K-System isolated barriers (KCD2, KFD2, KFA6) for intrinsically safe circuits: switch amplifiers, SMART transmitter power supplies, current drivers and temperature converters up to SIL 2.
8 part numbersPepperl+Fuchs rectangular inductive sensors: compact F-series blocks and VariKont L2/U1 housings with sensing ranges up to 40 mm and a rotatable sensing head.
8 part numbersPepperl+Fuchs capacitive sensors in M12, M18 and M30 housings and rectangular blocks, for detecting liquids, powders, granules and plastic or glass parts — often through a container wall.
7 part numbersPepperl+Fuchs R100 series miniature photoelectric sensors: background-suppression, diffuse, distance, retro-reflective and thru-beam types in one small housing with IO-Link.
10 part numbersPepperl+Fuchs ultrasonic sensors (UB and UC series) in M18 and M30 housings with switching or analog outputs and ranges up to 6 m — for tank level, distance and transparent objects.
FAQs
Flush-mount inductive sensor (NBB), 8 mm sensing range, M18 metal housing 50 mm long, PNP normally-open output (E2), M12 connector (V1).
E2 is a PNP output and E0 is NPN, both normally open. Use the same output type as your PLC inputs expect.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other Cylindrical Inductive Sensors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine Pepperl+Fuchs products only — no copies, and no substitutes without your approval.
