Pepperl+FuchsPepperl+Fuchs Rectangular Inductive Sensors
Cubic and VariKont inductive sensors for long sensing ranges and flat mounting.
- VariKont
- NBN40-L2
- NBN40-U1
- F10
- F11
- Sensing ranges up to 40 mm
- VariKont head rotates to five positions
- Compact F-series blocks for flat mounting
- PNP normally-open outputs
- M12 connector versions
Price on request — quoted per part number
Quotes within 24 hours on working days
- Genuine products onlyNo copies, no substitutes without your approval.
- Itemised quotationsClear prices, lead times and terms for every line.
- Engineer-checkedWe confirm the right part for your application.
- Delivery across PakistanDispatched to your plant, wherever it is.
About the Pepperl+Fuchs Rectangular Inductive Sensors

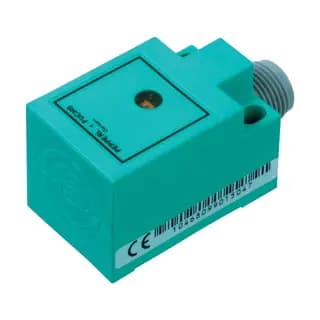

When a cylindrical sensor does not fit, or the target is further away, a rectangular inductive sensor is the answer. Pepperl+Fuchs makes two popular families. The compact F-series blocks (F10, F11, F29, F33) mount flat against a machine frame with two screws and suit guides, rails and tight spaces.
The VariKont family (L2 and U1 housings) offers the longest ranges — up to 40 mm on the NBN40 types — and a sensing head that can be turned to face in five directions, so one part covers many mounting positions. VariKont sensors are a standard choice for detecting large metal objects, valve flags and conveyor pallets.
As with the cylindrical range, NBB means flush and NBN non-flush mounting, E2 a PNP normally-open output and V1 an M12 connector. Send the code from your sensor and we supply the same type.
Range at a glance
- Housings
- F10, F11, F29, F33, VariKont L2, VariKont U1
- Sensing range
- 4 mm to 40 mm
- Supply
- 10–30 V DC
- Output
- PNP normally open (E2)
- Connection
- M12 connector or cable
Pepperl+Fuchs Rectangular Inductive Sensors part numbers
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Rectangular Inductive Sensors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| NBN40-U1-E2-V1 | VariKont inductive sensor, 40 mm non-flush, PNP NO, M12 | 40 mm · VariKont | |
| NBN40-L2-E2-V1 | VariKont L inductive sensor, 40 mm non-flush, PNP NO, M12 | 40 mm · VariKont L | |
| NBB20-L2-E2-V1 | VariKont L inductive sensor, 20 mm flush, PNP NO, M12 | 20 mm · VariKont L | |
| NBN15-F11-E2-V1 | Rectangular inductive sensor, 15 mm non-flush, PNP NO, M12 | 15 mm | |
| NBN10-F10-E2-V1 | Rectangular inductive sensor, 10 mm non-flush, PNP NO, M12 | 10 mm | |
| NBB7-F10-E2-V1 | Rectangular inductive sensor, 7 mm flush, PNP NO, M12 | 7 mm | |
| NBB5-F33-E2 | Compact rectangular inductive sensor, 5 mm flush, PNP NO, cable | 5 mm | |
| NBN4-F29-E2 | Compact rectangular inductive sensor, 4 mm non-flush, PNP NO, cable | 4 mm |
Not sure of the part number?
Send a photo of the Pepperl+Fuchs part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Pepperl+Fuchs Rectangular Inductive Sensors price in Pakistan
Pepperl+Fuchs Rectangular Inductive Sensors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Where the Rectangular Inductive Sensors is used
Large targets
Detecting pallets, carriers and machine parts at longer distances.
Valve position
Open/closed feedback from valve flags and actuators.
Tight spaces
Flat-mounted blocks on guides, rails and small frames.
Industries that run on it
Engineering support for the Rectangular Inductive Sensors
More from Pepperl+Fuchs
Other Pepperl+Fuchs ranges
- 12 part numbers
12 part numbersK-System Isolated Barriers
Pepperl+Fuchs K-System isolated barriers (KCD2, KFD2, KFA6) for intrinsically safe circuits: switch amplifiers, SMART transmitter power supplies, current drivers and temperature converters up to SIL 2.
- K-System
- KCD2
- KFD2
- KFA6
8 part numbersCapacitive Sensors
Pepperl+Fuchs capacitive sensors in M12, M18 and M30 housings and rectangular blocks, for detecting liquids, powders, granules and plastic or glass parts — often through a container wall.
- CBB
- CBN
- CCB
- CCN
7 part numbersR100 Series Photoelectric Sensors
Pepperl+Fuchs R100 series miniature photoelectric sensors: background-suppression, diffuse, distance, retro-reflective and thru-beam types in one small housing with IO-Link.
- R100
- OBT
- OBD
- OBR
10 part numbersUltrasonic Sensors
Pepperl+Fuchs ultrasonic sensors (UB and UC series) in M18 and M30 housings with switching or analog outputs and ranges up to 6 m — for tank level, distance and transparent objects.
- UB
- UC
- 18GM
- 30GM
FAQs
Frequently asked questions
Why choose a VariKont sensor?
For long sensing ranges (up to 40 mm) and flexible mounting — the sensing head can be turned to face the target from different directions.
Can I replace a VariKont with a cylindrical sensor?
Only if the target is close enough and there is space for a threaded sensor. It is usually simpler to replace like for like — send the code and we match it.
What is the price of Pepperl+Fuchs Rectangular Inductive Sensors in Pakistan?
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
My Pepperl+Fuchs part number is not in the table. Can you offer it?
The table shows the codes we are asked for most; we offer the other Rectangular Inductive Sensors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Are these genuine Pepperl+Fuchs products?
Yes. We offer genuine Pepperl+Fuchs products only — no copies, and no substitutes without your approval.
