FotekM18 tubular, A3 and E3 photoelectric sensors — diffuse, mirror-reflex and through-beam.
Price on request — quoted per part number
Quotes within 24 hours on working days
Photoelectric sensors detect objects with a light beam, at distances from a few centimetres to many metres and regardless of material. Fotek's range covers the everyday detection tasks on conveyors and packaging machines at an economical price.

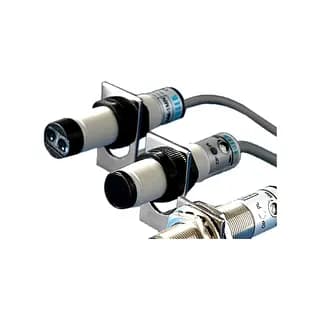

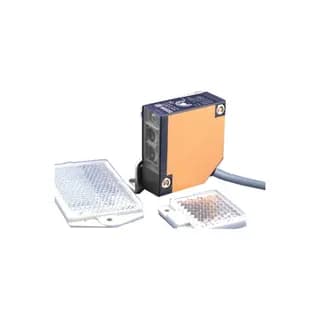

The M18 series is a threaded tubular sensor: CDR types are diffuse (reflex) sensors that see the object directly (10–60 cm), CDM types are mirror-reflex sensors working with a reflector (around 2 m), and CDT types are through-beam pairs for the longest range. The A3 and E3 series offer the same principles in rectangular housings, including polarised mirror-reflex types for shiny products.
Choose diffuse for short ranges, mirror-reflex for across-conveyor detection and through-beam for long distances or dusty areas. Send the distance and object type and we recommend the sensor.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Photoelectric Sensors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| CDR-10X | M18 diffuse sensor, 10 cm, sensitivity trimmer, IP66 | 10 cm | |
| CDR-30X | M18 diffuse sensor, 30 cm, sensitivity trimmer, IP66 | 30 cm | |
| CDR-60X | M18 diffuse sensor, 60 cm, sensitivity trimmer, IP66 | 60 cm | |
| CDR-30X-M12 | M18 diffuse sensor, M12 connector, 30 cm, sensitivity trimmer, IP66 | 30 cm | |
| CDM-2MX | M18 mirror-reflex sensor, 0.1 m–2.5M, sensitivity trimmer, IP66 | 2 m | |
| CDT-10MX | M18 through-beam sensor pair, 10 m, sensitivity trimmer, IP66 | 10 m | |
| A3R-30X | A3 diffuse sensor, 30 cm, sensitivity trimmer, IP65 | 30 cm | |
| A3G-2MR | A3 mirror-reflex sensor, 3 m, sensitivity trimmer, IP65 | 3 m | |
| E3G-6MRE | E3 polarised mirror-reflex sensor, 6 m, fixed sensitivity, IP66, Polarized Mirror Reflex Type | 6 m | |
| E3R-60X | E3 diffuse sensor, 60 cm, sensitivity trimmer, IP66 | 60 cm |
Send a photo of the Fotek part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Fotek Photoelectric Sensors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Cartons, bottles and packs on conveyors.
Product counting at line outfeeds.
Detecting parts at stations and machine infeeds.
Coding, labeling and end-of-line automation for faster, error-free packing.
Explore
RO and mineral-water plants with filling-line coding and automation.
Explore
Flexible lines, accurate coding and dependable spares for fast-moving production.
Explore
Hygienic automation, coding and water systems for high-speed food and beverage lines.
ExploreMore from Fotek
11 part numbersFotek single-phase solid state relays: SSR-DA (DC control, AC load), SSR-AA (AC control, AC load) and SSR-DD (DC load), 5 A to 75 A, including high-voltage -H versions up to 480 V AC.
7 part numbersFotek TSR three-phase solid state relays with DC or AC control, 25 A to 75 A per phase and load voltages up to 380 V AC (480 V AC on -H versions), for three-phase heater banks.
12 part numbersFotek NT and MT PID temperature controllers in 48×48 to 96×96 mm panel sizes with relay, SSR voltage-pulse or 4–20 mA output, plus economical TC series controllers.
11 part numbersFotek PM cylindrical (M12, M18, M30) and PS square inductive proximity sensors with NPN or PNP outputs, cable or M12 connector, for metal detection on machines and conveyors.
8 part numbersFotek analogue timers: H3 plug-in, H5B and TM48 panel-mount, STP multi-range timers with on-delay, flicker and star-delta functions for motor starters and control circuits.
5 part numbersFotek PR-1 phase relays and PVR-3 phase and voltage relays for motor protection, and FR-1 floatless level relays for pump and tank level control with electrode probes.
FAQs
Diffuse sensors see the object directly at short range. Mirror-reflex sensors work with a reflector across the conveyor and reach further; polarised versions handle shiny products.
Yes. We supply a suitable reflector with the sensor.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other Photoelectric Sensors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine Fotek products only — no copies, and no substitutes without your approval.
