FotekPhase-failure, voltage and floatless level relays for motor and pump protection.
Price on request — quoted per part number
Quotes within 24 hours on working days
In Pakistan, phase loss, reversed phases and voltage swings are common causes of burnt motors. A phase relay watches the incoming supply and drops out the motor contactor before damage is done. Fotek's PR-1 phase relay detects phase faults on the supply; the PVR-3 adds adjustable over- and under-voltage limits.
The FR-1 floatless level relay controls pumps and tanks with simple electrode probes instead of mechanical float switches — ideal for water tanks, sumps and process vessels. FR-1L suits long cable runs and FR-1H high-sensitivity applications with low-conductivity liquids.
These relays plug into standard 8- or 11-pin sockets and are ordered with the supply voltage. Send your motor or tank application and we recommend the relay.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Phase, Voltage & Level Relays variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|

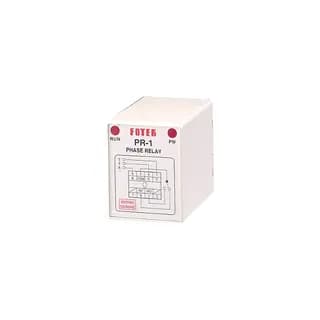

| PR-1 | Phase relay for three-phase supplies, reset delay 2 s (add the supply voltage when ordering) | Phase failure | |
| PVR-3 | Phase and voltage relay: phase protection with over/under-voltage limits ±20% (add the supply voltage when ordering) | Phase + voltage | |

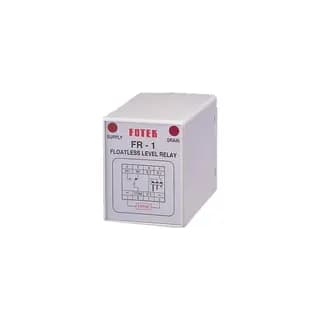

| FR-1 | Floatless level relay, standard type (ON < 30 kΩ, OFF > 60 kΩ) (add the supply voltage when ordering) | Standard | |
| FR-1L | Floatless level relay, long-distance type (ON < 4 kΩ, OFF > 15 kΩ) (add the supply voltage when ordering) | Long distance | |
| FR-1H | Floatless level relay, high-sensitivity type (ON < 70 kΩ, OFF > 300 kΩ) (add the supply voltage when ordering) | High sensitivity |
Send a photo of the Fotek part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Fotek Phase, Voltage & Level Relays prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Phase loss and voltage protection for pumps, compressors and fans.
Automatic filling and dry-run protection.
Level control of conductive liquids.
RO and mineral-water plants with filling-line coding and automation.
Explore
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
Drives, controls and energy savings for spinning, weaving and processing mills.
Explore
Process control, coding and water treatment for milk and dairy plants.
ExploreMore from Fotek
11 part numbersFotek single-phase solid state relays: SSR-DA (DC control, AC load), SSR-AA (AC control, AC load) and SSR-DD (DC load), 5 A to 75 A, including high-voltage -H versions up to 480 V AC.
7 part numbersFotek TSR three-phase solid state relays with DC or AC control, 25 A to 75 A per phase and load voltages up to 380 V AC (480 V AC on -H versions), for three-phase heater banks.
12 part numbersFotek NT and MT PID temperature controllers in 48×48 to 96×96 mm panel sizes with relay, SSR voltage-pulse or 4–20 mA output, plus economical TC series controllers.
11 part numbersFotek PM cylindrical (M12, M18, M30) and PS square inductive proximity sensors with NPN or PNP outputs, cable or M12 connector, for metal detection on machines and conveyors.
10 part numbersFotek photoelectric sensors: M18 tubular CDR/CDM/CDT, A3 and E3 series in diffuse (reflex), mirror-reflex and through-beam versions, for object detection on conveyors and machines.
8 part numbersFotek analogue timers: H3 plug-in, H5B and TM48 panel-mount, STP multi-range timers with on-delay, flicker and star-delta functions for motor starters and control circuits.
FAQs
If one phase is lost or the voltage drops, a motor overheats and can burn out. A phase relay stops the motor before damage occurs.
Electrode probes in the tank detect the liquid by conductivity, and the relay switches the pump at the high and low levels — no moving floats to stick.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other Phase, Voltage & Level Relays variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine Fotek products only — no copies, and no substitutes without your approval.
Talk to an engineer
Send the part numbers and quantities, a BOM or a nameplate photo. We check availability and reply with an itemised quotation.
Quotes within 24 hours on working days
Mon–Sat, 10:00 am – 8:00 pm
