FotekPM cylindrical and PS square proximity sensors, NPN and PNP, M8 to M30.
Price on request — quoted per part number
Quotes within 24 hours on working days

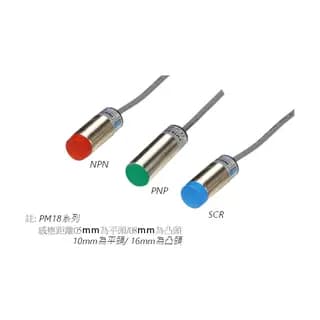

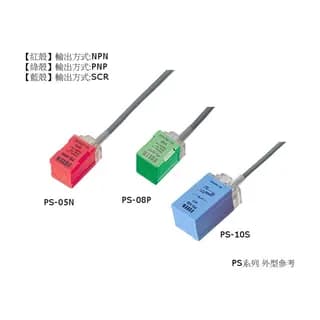

Fotek proximity sensors are an economical, widely stocked choice for detecting metal parts on machines, conveyors and packaging lines. The PM series covers cylindrical threaded housings from M5 to M30; the PS series is a square block that mounts flat with two screws.
The code tells you everything: PM18-08N is an M18 sensor with 8 mm sensing distance and NPN normally-open output; P is PNP, NB/PB the normally-closed versions, -M12 a connector version and PM18E an extended-range type. In the PS series, PS-10N is a square sensor with 10 mm range and NPN output.
Match the output type (NPN or PNP) to your PLC inputs when replacing a sensor. Send the code from the old sensor and we supply the same type.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Inductive Proximity Sensors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| PM12-04N | M12 inductive sensor, 4 mm, NPN NO, IP67, non-flush | M12 · NPN | |
| PM12-04P | M12 inductive sensor, 4 mm, PNP NO, IP67, non-flush | M12 · PNP | |
| PM12-04N-M12 | M12 inductive sensor, M12 connector, 4 mm, NPN NO, IP67, non-flush | M12 · NPN | |
| PM18-08N | M18 inductive sensor, 8 mm, NPN NO, IP67, non-flush | M18 · NPN | |
| PM18-08P | M18 inductive sensor, 8 mm, PNP NO, IP67, non-flush | M18 · PNP | |
| PM18-08N-M12 | M18 inductive sensor, M12 connector, 8 mm, NPN NO, IP67, non-flush | M18 · NPN | |
| PM30-15N | M30 inductive sensor, 15 mm, NPN NO, IP67, non-flush | M30 · NPN | |
| PM30-15P | M30 inductive sensor, 15 mm, PNP NO, IP67, non-flush | M30 · PNP | |
| PS-10N | Square inductive sensor, 10 mm, NPN NO, IP67 | Square · NPN | |
| PS-15N | Square inductive sensor, 15 mm, NPN NO, IP67 | Square · NPN | |
| PS-15P | Square inductive sensor, 15 mm, PNP NO, IP67 | Square · PNP |
Send a photo of the Fotek part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Fotek Inductive Proximity Sensors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Detecting metal carriers, cans and parts.
End positions, cams and indexing.
Shaft and sprocket rotation detection.
Coding, labeling and end-of-line automation for faster, error-free packing.
Explore
Drives, controls and energy savings for spinning, weaving and processing mills.
Explore
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
RO and mineral-water plants with filling-line coding and automation.
ExploreMore from Fotek
11 part numbersFotek single-phase solid state relays: SSR-DA (DC control, AC load), SSR-AA (AC control, AC load) and SSR-DD (DC load), 5 A to 75 A, including high-voltage -H versions up to 480 V AC.
7 part numbersFotek TSR three-phase solid state relays with DC or AC control, 25 A to 75 A per phase and load voltages up to 380 V AC (480 V AC on -H versions), for three-phase heater banks.
12 part numbersFotek NT and MT PID temperature controllers in 48×48 to 96×96 mm panel sizes with relay, SSR voltage-pulse or 4–20 mA output, plus economical TC series controllers.
10 part numbersFotek photoelectric sensors: M18 tubular CDR/CDM/CDT, A3 and E3 series in diffuse (reflex), mirror-reflex and through-beam versions, for object detection on conveyors and machines.
8 part numbersFotek analogue timers: H3 plug-in, H5B and TM48 panel-mount, STP multi-range timers with on-delay, flicker and star-delta functions for motor starters and control circuits.
5 part numbersFotek PR-1 phase relays and PVR-3 phase and voltage relays for motor protection, and FR-1 floatless level relays for pump and tank level control with electrode probes.
FAQs
PM series, M18 housing, 8 mm sensing distance, NPN normally-open output. P instead of N is PNP; NB/PB are normally-closed.
Often yes, if the size, sensing distance, output type and connection match. Send both codes and we check.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other Inductive Proximity Sensors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine Fotek products only — no copies, and no substitutes without your approval.
