FotekH3, H5B, TM48 and STP timers — on-delay, flicker and star-delta.
Price on request — quoted per part number
Quotes within 24 hours on working days
Timers are everywhere in control panels: delaying a motor start, switching a star-delta starter from star to delta, flashing a warning lamp or timing a process step. Fotek's analogue timers are simple, robust and familiar to panel builders and maintenance technicians.

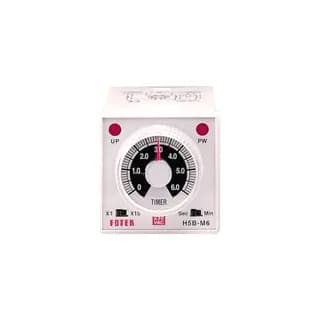

The H3 series is the classic 8-pin plug-in timer with single-range and multi-range versions (H3-M3 covers 3 s to 30 min), plus the H3-TRD star-delta timer. H5B and TM48 are panel-mount 48×48 mm timers; TM48 accepts a wide 24–250 V AC/DC supply. STP timers offer multi-range setting in DIN-rail and panel versions.
Most timers are ordered with the supply voltage added to the code. Tell us the time range, function and supply voltage, or send the code from your existing timer.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Timers variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|

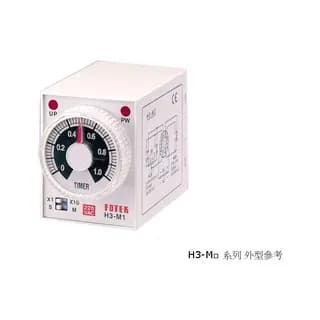

| H3-M1 | H3 plug-in timer, ranges 1 s / 10 s / 1 min / 10 min (add the supply voltage when ordering) | 1 s–10 min | |
| H3-M3 | H3 plug-in timer, ranges 3 s / 30 s / 3 min / 30 min (add the supply voltage when ordering) | 3 s–30 min | |
| H3-M6 | H3 plug-in timer, ranges 6 s / 60 s / 6 min / 60 min (add the supply voltage when ordering) | 6 s–60 min | |
| H3-TRD-30S | H3 star-delta timer, range 30 s, changeover 0.2 s (add the supply voltage when ordering) | Star-delta | |
| H5B-M3 | H5B panel timer, ranges 3 s / 30 s / 3 min / 30 min (add the supply voltage when ordering) | 3 s–30 min | |
| TM48-M3 | TM48 panel timer, ranges 3 s / 30 s / 3 min / 30 min, supply 24–250 V AC/DC | 3 s–30 min | |
| STPN-M3 | STP DIN-rail timer, ranges 3 s / 30 s / 3 min / 30 min (add the supply voltage when ordering) | 3 s–30 min | |
| STPY-M3 | STP panel timer, ranges 3 s / 30 s / 3 min / 30 min (add the supply voltage when ordering) | 3 s–30 min |
Send a photo of the Fotek part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Fotek Timers prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Star-to-delta changeover timing for motor starters.
Staggered starting of pumps, fans and compressors.
Timed steps on simple machines and mixers.
More from Fotek
11 part numbersFotek single-phase solid state relays: SSR-DA (DC control, AC load), SSR-AA (AC control, AC load) and SSR-DD (DC load), 5 A to 75 A, including high-voltage -H versions up to 480 V AC.
7 part numbersFotek TSR three-phase solid state relays with DC or AC control, 25 A to 75 A per phase and load voltages up to 380 V AC (480 V AC on -H versions), for three-phase heater banks.
12 part numbersFotek NT and MT PID temperature controllers in 48×48 to 96×96 mm panel sizes with relay, SSR voltage-pulse or 4–20 mA output, plus economical TC series controllers.
11 part numbersFotek PM cylindrical (M12, M18, M30) and PS square inductive proximity sensors with NPN or PNP outputs, cable or M12 connector, for metal detection on machines and conveyors.
10 part numbersFotek photoelectric sensors: M18 tubular CDR/CDM/CDT, A3 and E3 series in diffuse (reflex), mirror-reflex and through-beam versions, for object detection on conveyors and machines.
5 part numbersFotek PR-1 phase relays and PVR-3 phase and voltage relays for motor protection, and FR-1 floatless level relays for pump and tank level control with electrode probes.
FAQs
The H3-TRD star-delta timer handles the star time and the changeover pause in one unit.
The voltage of the control circuit that powers the timer, commonly 220 V AC or 24 V DC. Add it to the code when ordering.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other Timers variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine Fotek products only — no copies, and no substitutes without your approval.
