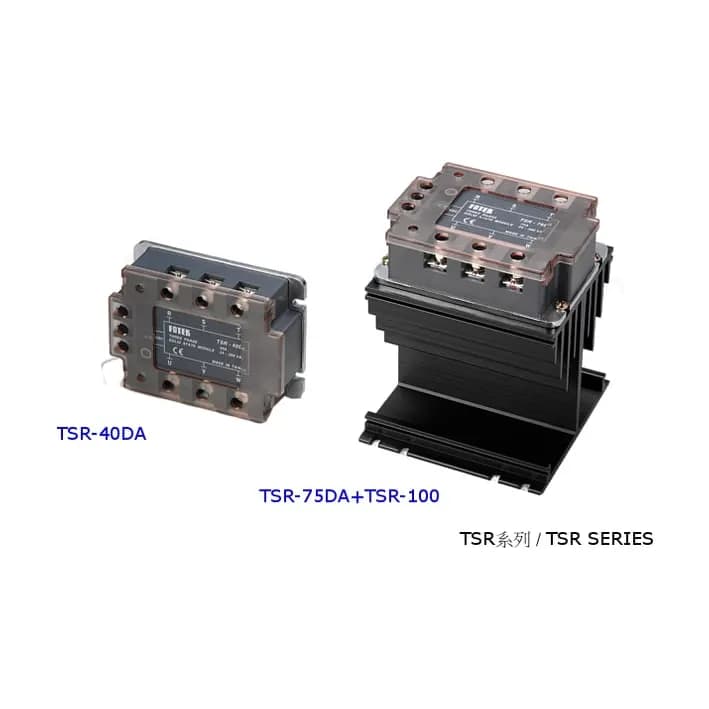

FotekTSR three-phase solid state relays from 25 A to 75 A for three-phase heaters.
Price on request — quoted per part number
Quotes within 24 hours on working days
Three-phase heater banks — on extruders, dryers, ovens and furnaces — are switched more neatly by one three-phase solid state relay than by three single-phase units. Fotek's TSR series switches all three phases from one control signal, in a single compact module.
As with single-phase relays, the code shows current and control type: TSR-40DA is 40 A per phase with 4–32 V DC control, TSR-25AA is controlled by 80–250 V AC, and -H versions handle loads up to 480 V AC.
TSR relays must be mounted on an adequately sized heat sink, ideally with forced cooling in hot panels. We supply TSR relays and matching heat sinks — send the heater power and voltage and we size them.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Three-Phase Solid State Relays (TSR) variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| TSR-25DA | 3-phase SSR DC→AC, control 4–32 V DC, load 24–380 V AC | 25 A | |
| TSR-40DA | 3-phase SSR DC→AC, control 4–32 V DC, load 24–380 V AC | 40 A | |
| TSR-50DA | 3-phase SSR DC→AC, control 4–32 V DC, load 24–380 V AC | 50 A | |
| TSR-75DA | 3-phase SSR DC→AC, control 4–32 V DC, load 24–380 V AC | 75 A | |
| TSR-40DA-H | 3-phase SSR DC→AC high voltage, control 4–32 V DC, load 90–480 V AC | 40 A · 480 V | |
| TSR-25AA | 3-phase SSR AC→AC, control 80–250 V AC, load 24–380 V AC | 25 A | |
| TSR-40AA | 3-phase SSR AC→AC, control 80–250 V AC, load 24–380 V AC | 40 A |
Send a photo of the Fotek part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Fotek Three-Phase Solid State Relays (TSR) prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Three-phase barrel and die heaters.
Three-phase heater banks in drying and curing ovens.
Heater switching on industrial furnaces.
Robust instrumentation, drives and safety systems for demanding processes.
Explore
Drives, controls and energy savings for spinning, weaving and processing mills.
Explore
Hygienic automation, coding and water systems for high-speed food and beverage lines.
ExploreMore from Fotek
11 part numbersFotek single-phase solid state relays: SSR-DA (DC control, AC load), SSR-AA (AC control, AC load) and SSR-DD (DC load), 5 A to 75 A, including high-voltage -H versions up to 480 V AC.
12 part numbersFotek NT and MT PID temperature controllers in 48×48 to 96×96 mm panel sizes with relay, SSR voltage-pulse or 4–20 mA output, plus economical TC series controllers.
11 part numbersFotek PM cylindrical (M12, M18, M30) and PS square inductive proximity sensors with NPN or PNP outputs, cable or M12 connector, for metal detection on machines and conveyors.
10 part numbersFotek photoelectric sensors: M18 tubular CDR/CDM/CDT, A3 and E3 series in diffuse (reflex), mirror-reflex and through-beam versions, for object detection on conveyors and machines.
8 part numbersFotek analogue timers: H3 plug-in, H5B and TM48 panel-mount, STP multi-range timers with on-delay, flicker and star-delta functions for motor starters and control circuits.
5 part numbersFotek PR-1 phase relays and PVR-3 phase and voltage relays for motor protection, and FR-1 floatless level relays for pump and tank level control with electrode probes.
FAQs
A TSR switches all three phases from one control signal in one module — neater and quicker to wire for balanced three-phase heaters.
Use the heater line current per phase and allow a margin (often 1.5–2 ×) for hot panels and inrush. We can calculate it for you.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other Three-Phase Solid State Relays (TSR) variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine Fotek products only — no copies, and no substitutes without your approval.
