SICKSICK deTec4 Safety Light Curtains
Type 4 safety light curtains for finger and hand protection, in sets ready to install.
- deTec4
- deTec4 Core
- C4C
- Type 4, PL e, SIL 3
- 14 mm (finger) or 30 mm (hand) resolution
- Protective field heights from 300 mm to 2,100 mm
- No blind zone at the ends
- Complete sets with brackets
Price on request — quoted per part number
Quotes within 24 hours on working days
- Genuine products onlyNo copies, no substitutes without your approval.
- Itemised quotationsClear prices, lead times and terms for every line.
- Engineer-checkedWe confirm the right part for your application.
- Delivery across PakistanDispatched to your plant, wherever it is.

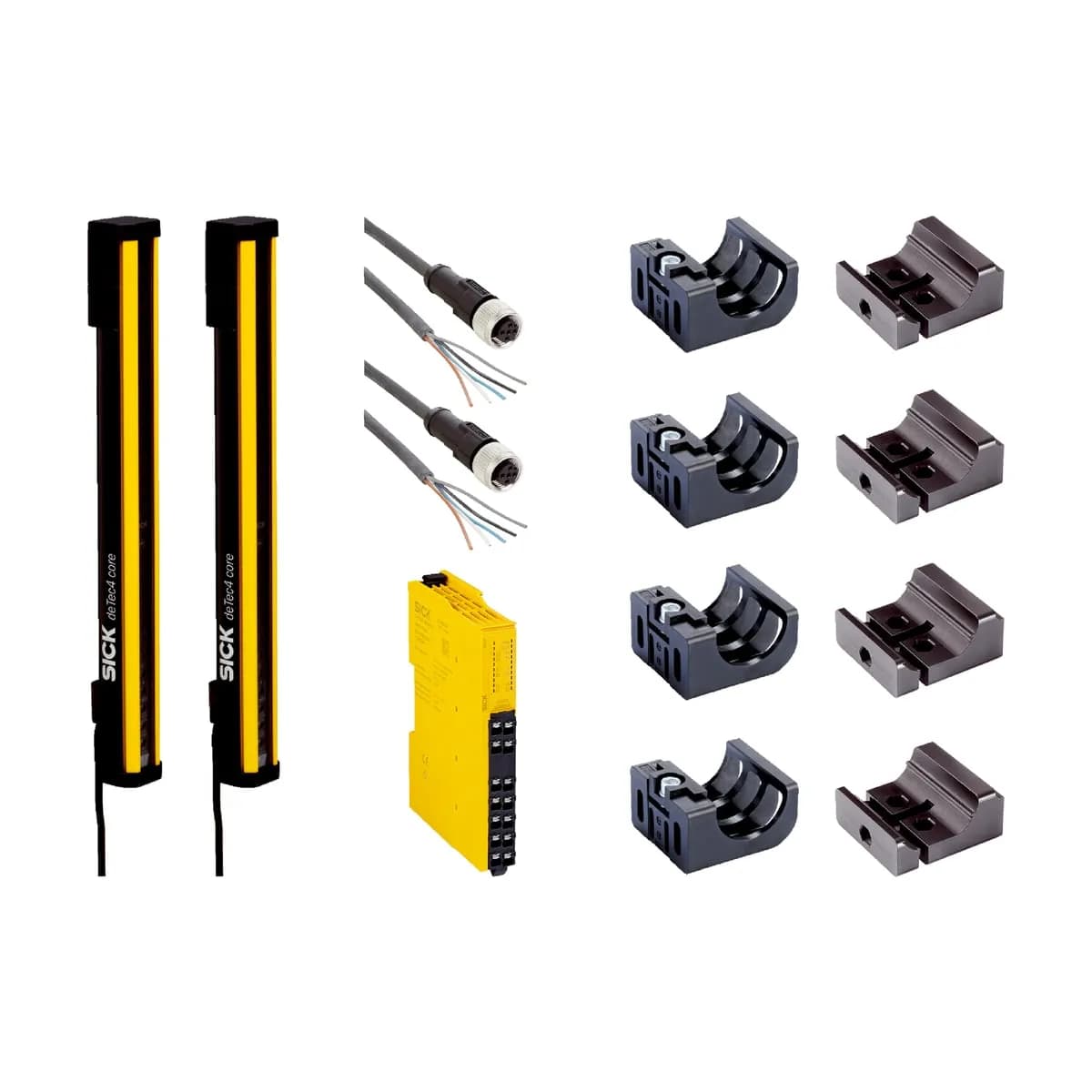

About the SICK deTec4 Safety Light Curtains
Safety light curtains protect operators at danger points such as presses, cutting machines, palletisers and robot cells: when a hand or body enters the protective field, the machine stops before anyone is hurt. The SICK deTec4 Core is a Type 4 light curtain rated PL e / SIL 3, the highest level for this kind of protection.
Choose the resolution by what must be detected — 14 mm for finger protection, 30 mm for hand protection — and the protective field height by the size of the opening. The deTec4 Core sets include sender, receiver and mounting brackets, and the slim profile has no blind zone at the ends, so it fits closely to the machine frame.
A light curtain is only part of a safety function: it must be connected to a safety relay or safety controller and installed at the correct safety distance. Our engineers can calculate the distance, wire the safety circuit and validate it with your team.
Range at a glance
- Safety level
- Type 4, PL e, SIL 3
- Resolution
- 14 mm or 30 mm
- Protective field height
- 300 mm to 2,100 mm
- Connection
- M12 connector
- Supplied as
- Set: sender, receiver, brackets
SICK deTec4 Safety Light Curtains part numbers
The codes our customers ask for most. Add the ones you need to your quote list — or send any other deTec4 Safety Light Curtains variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| deTec4 Core Set 14/1500Order no. 1062904 | deTec4 Core safety light curtain set, 14 mm resolution, 1,500 mm field height, PL e, SIL 3, Type 4 | 14 mm · 1,500 mm | |
| deTec4 Core Set 30/600Order no. 1062911 | deTec4 Core safety light curtain set, 30 mm resolution, 600 mm field height, PL e, SIL 3, Type 4 | 30 mm · 600 mm | |
| deTec4 Core Set 30/1800Order no. 1062919 | deTec4 Core safety light curtain set, 30 mm resolution, 1,800 mm field height, PL e, SIL 3, Type 4 | 30 mm · 1,800 mm | |
| deTec4 Core Set 14/300Order no. 1062896 | deTec4 Core safety light curtain set, 14 mm resolution, 300 mm field height, PL e, SIL 3, Type 4 | 14 mm · 300 mm | |
| deTec4 Core Set 30/1650Order no. 1062918 | deTec4 Core safety light curtain set, 30 mm resolution, 1,650 mm field height, PL e, SIL 3, Type 4 | 30 mm · 1,650 mm | |
| deTec4 Core Set 30/1050Order no. 1062914 | deTec4 Core safety light curtain set, 30 mm resolution, 1,050 mm field height, PL e, SIL 3, Type 4 | 30 mm · 1,050 mm | |
| deTec4 Core Set 14/1350Order no. 1062903 | deTec4 Core safety light curtain set, 14 mm resolution, 1,350 mm field height, PL e, SIL 3, Type 4 | 14 mm · 1,350 mm | |
| deTec4 Core Set 14/900Order no. 1062900 | deTec4 Core safety light curtain set, 14 mm resolution, 900 mm field height, PL e, SIL 3, Type 4 | 14 mm · 900 mm | |
| deTec4 Core Set 14/1050Order no. 1062901 | deTec4 Core safety light curtain set, 14 mm resolution, 1,050 mm field height, PL e, SIL 3, Type 4 | 14 mm · 1,050 mm | |
| deTec4 Core Set 30/2100Order no. 1062921 | deTec4 Core safety light curtain set, 30 mm resolution, 2,100 mm field height, PL e, SIL 3, Type 4 | 30 mm · 2,100 mm |
Not sure of the part number?
Send a photo of the SICK part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
SICK deTec4 Safety Light Curtains price in Pakistan
SICK deTec4 Safety Light Curtains prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Where the deTec4 Safety Light Curtains is used
Presses and cutters
Point-of-operation protection on presses, guillotines and die cutters.
Palletisers and robot cells
Access protection at infeeds, outfeeds and cell openings.
Packaging machines
Guarding openings where operators load or clear material.
Industries that run on it
Engineering support for the deTec4 Safety Light Curtains
More from SICK
Other SICK ranges
- 12 part numbers
10 part numbersG6 Small Photoelectric Sensors
SICK G6 small photoelectric sensors, led by the GL6 retro-reflective range: 6 m sensing with a reflector (12 m on GL6L), PNP or NPN, M8 connector or cable — a low-cost standard for conveyors.
- GL6
- GL6G
- GL6L
- G6
10 part numbersW12 Photoelectric Sensors
SICK W12 photoelectric sensors in a robust metal housing: background-suppression (WTB12), foreground-suppression (WTF12), retro-reflective (WL12) and through-beam versions for demanding production lines.
- W12
- WTB12
- WTF12
- WL12
8 part numbersKTS Contrast Sensors
SICK KTS contrast sensors detect print marks and register marks on film, labels and packaging at high speed — used on flow wrappers, label machines and form-fill-seal machines.
- KTS
- KTS-WB
- KTX
10 part numbersWF Fork Sensors
SICK WF, WFS and WFE fork sensors for label-gap detection and small-part detection, with fork widths from 2 mm to 180 mm and pre-aligned sender and receiver in one housing.
- WF
- WFS
- WFE
8 part numbersMZT8 Magnetic Cylinder Sensors
SICK MZT8 magnetic cylinder sensors for T-slot pneumatic cylinders: drop-in mounting, NO or NC outputs, M8/M12 pigtail or open cable connection.
- MZT8
- MZT8-03VPS
FAQs
Frequently asked questions
Which resolution do I need?
14 mm protects fingers and is required close to the danger point; 30 mm protects hands and allows a slightly larger safety distance. The safety distance calculation decides — we can do it for you.
Can a light curtain be connected directly to a contactor?
No. It must be evaluated by a safety relay or safety controller that monitors the contactors. We supply and wire the complete safety circuit.
What is the price of SICK deTec4 Safety Light Curtains in Pakistan?
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
My SICK part number is not in the table. Can you offer it?
The table shows the codes we are asked for most; we offer the other deTec4 Safety Light Curtains variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Are these genuine SICK products?
Yes. We offer genuine SICK products only — no copies, and no substitutes without your approval.
