WAGO24 V DC power supplies from 1 A to 40 A — Eco for price, Classic for everyday panels, Pro 2 with boost and communication.
Price on request — quoted per part number
Quotes within 24 hours on working days
WAGO's power supply range covers every panel budget. The Eco series is the economical choice for simple machines, with a DC-OK LED and 2.5 A, 5 A or 10 A output. The Classic series adds a DC OK signal and, from 5 A, TopBoost — a short high-current reserve that trips downstream miniature circuit breakers reliably. The Pro 2 series is WAGO's top range: TopBoost plus PowerBoost for demanding starts, configurable overload behaviour, a signal input and output, and optional communication via IO-Link, EtherNet/IP, Modbus TCP or Modbus RTU for monitoring the supply from the PLC.
Most units are 24 V DC; 48 V versions (787-1633, 2787-2154) are available for drives and special loads. WAGO electronic circuit breakers such as 787-2861/100-000 protect individual 24 V branches.
We supply WAGO power supplies for new panels and as replacements. Tell us the load current and input voltage and we recommend the series and size.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Power Supplies (Eco, Classic, Pro 2) variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| 787-1712 | Power supply Eco, 1-phase, 24 V DC, 2.5 A, DC-OK LED | Eco · 2.5 A | |
| 787-1722 | Power supply Eco, 1-phase, 24 V DC, 5 A, DC-OK LED | Eco · 5 A | |
| 787-1732 | Power supply Eco, 1-phase, 24 V DC, 10 A, DC-OK LED | Eco · 10 A | |
| 787-1602 | Power supply Classic, 1-phase, 24 V DC, 1 A, NEC Class 2 | Classic · 1 A | |
| 787-1606 | Power supply Classic, 1-phase, 24 V DC, 2 A, NEC Class 2 | Classic · 2 A | |
| 787-1616 | Power supply Classic, 1-phase, 24 V DC, 4 A, DC OK signal | Classic · 4 A | |
| 787-1622 | Power supply Classic, 1-phase, 24 V DC, 5 A, TopBoost | Classic · 5 A | |
| 787-1632 | Power supply Classic, 1-phase, 24 V DC, 10 A, TopBoost | Classic · 10 A | |
| 787-1633 | Power supply Classic, 1-phase, 48 V DC, 5 A, TopBoost | Classic · 48 V | |
| 2787-2144 | Power supply Pro 2, 1-phase, 24 V DC, 5 A, TopBoost + PowerBoost | Pro 2 · 5 A | |

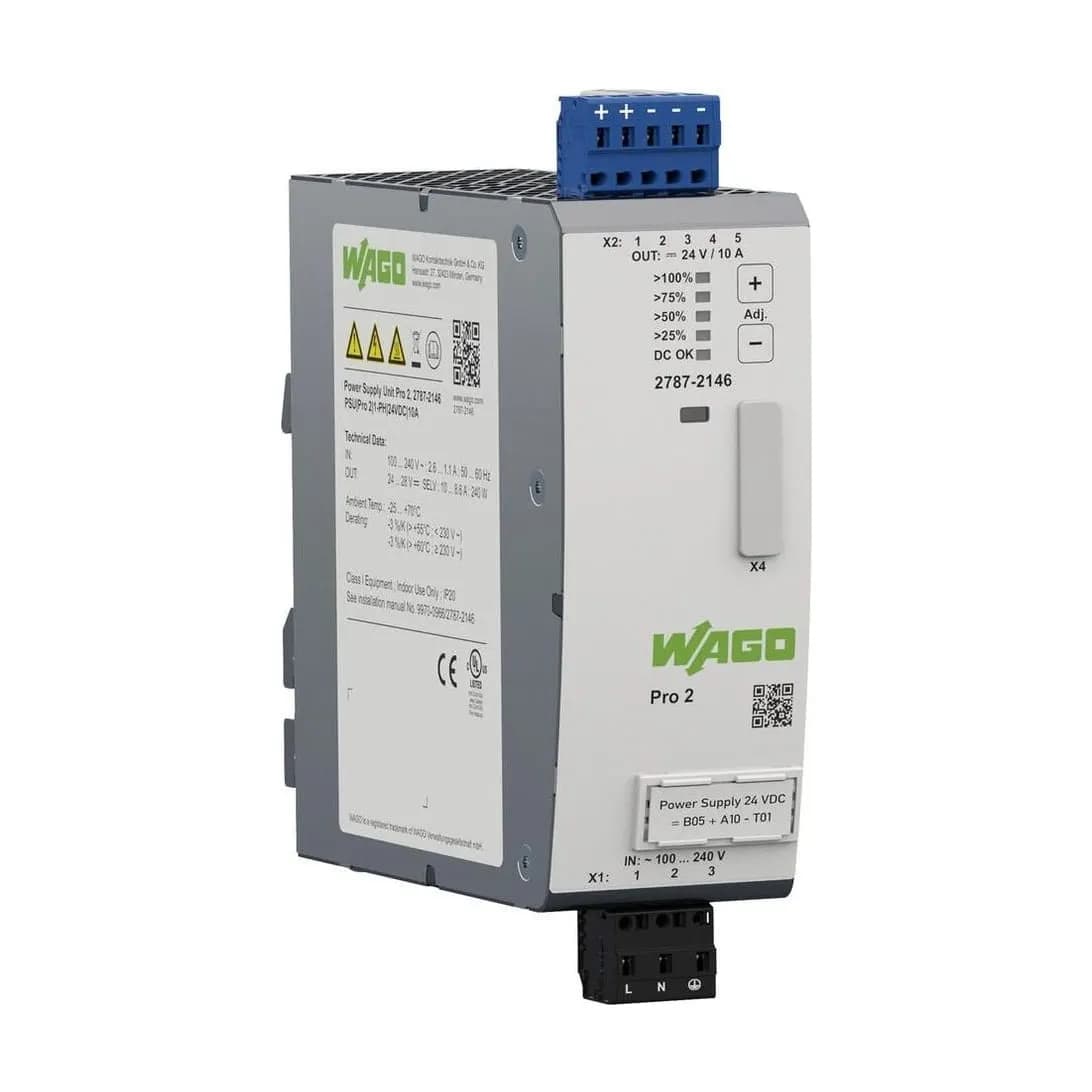

| 2787-2146 | Power supply Pro 2, 1-phase, 24 V DC, 10 A, TopBoost + PowerBoost | Pro 2 · 10 A | |
| 2787-2147 | Power supply Pro 2, 1-phase, 24 V DC, 20 A, TopBoost + PowerBoost | Pro 2 · 20 A | |
| 2787-2448 | Power supply Pro 2, 24 V DC, 40 A, TopBoost + PowerBoost | Pro 2 · 40 A | |
| 2787-2154 | Power supply Pro 2, 1-phase, 48 V DC, 2.5 A | Pro 2 · 48 V | |
| 787-2861/100-000 | Electronic circuit breaker, 1 channel, 24 V DC, 1 A, signal contact | ECB · 1 A |
Send a photo of the WAGO part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
WAGO Power Supplies (Eco, Classic, Pro 2) prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
24 V supply for PLCs, I/O, HMIs and sensors.
Pro 2 monitoring from the PLC to catch supply problems early.
Electronic circuit breakers for individual 24 V circuits.
Coding, labeling and end-of-line automation for faster, error-free packing.
Explore
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
Drives, controls and energy savings for spinning, weaving and processing mills.
Explore
Precise coding, controlled automation and clean utilities for regulated production.
ExploreMore from WAGO
15 part numbersWAGO 221 lever splicing connectors for solid, stranded and fine-stranded conductors up to 4 mm² or 6 mm², 2 to 5 conductors, plus inline versions, mounting carriers and 2273 PUSH WIRE connectors.
15 part numbersWAGO TOPJOB S rail-mount terminal blocks with Push-in CAGE CLAMP connection: through, ground, multi-conductor, double-deck and fuse terminal blocks from 2.5 to 16 mm², with jumpers, end plates and end stops.
6 part numbersWAGO relay modules: slim 857 and 859 series (6 mm, 1 changeover), 788 series (15 mm, up to 16 A) and 858 series with 4 changeover contacts and manual operation, for 24 V control circuits.
16 part numbersWAGO PFC100 and PFC200 controllers, Modbus TCP and PROFINET fieldbus couplers and 750 series I/O modules — digital, analog and RTD — for machine and building automation.
11 part numbersWAGO Smart Printer thermal transfer printer (300 dpi) and marking materials: WMB-Inline and Mini-WSB markers on reels, marking strips, WMB marking cards, ink ribbons and rollers.
FAQs
A short high-current reserve above the rated output that makes downstream miniature circuit breakers trip reliably when a short circuit occurs, instead of the supply simply limiting its current.
Eco for simple, cost-sensitive machines; Classic for most control panels; Pro 2 where you need boost reserves, configurable behaviour or monitoring via a network.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other Power Supplies (Eco, Classic, Pro 2) variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine WAGO products only — no copies, and no substitutes without your approval.
