WAGOTool-free lever connectors for all conductor types, plus PUSH WIRE connectors for solid wire.
Price on request — quoted per part number
Quotes within 24 hours on working days

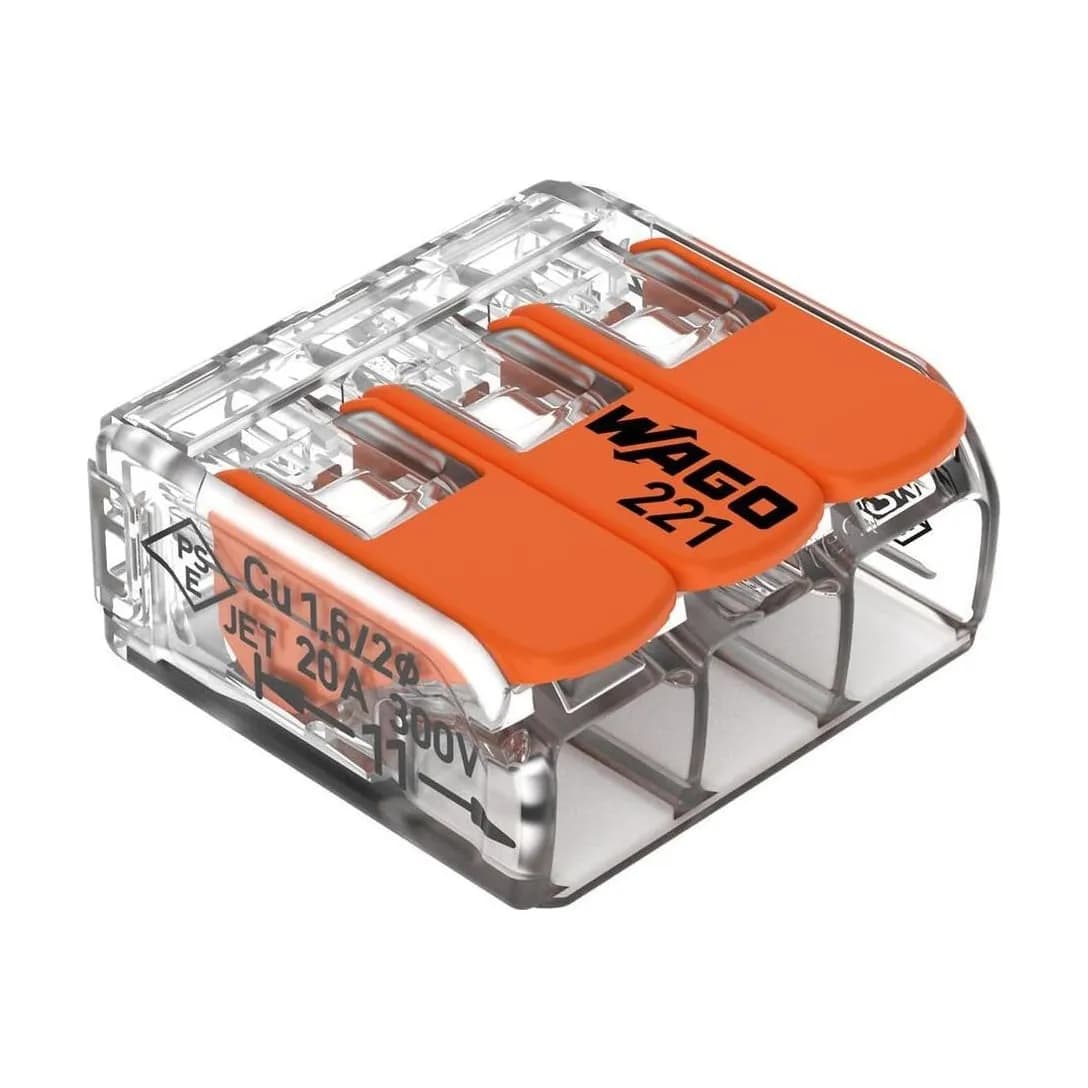

WAGO 221 lever connectors are the transparent connectors with orange levers that electricians now use instead of screw terminal strips and tape. Lift the lever, insert the stripped conductor, close the lever — the connection is made, visible through the housing and reusable. The same connector takes solid, stranded and fine-stranded wires, so mixed conductors can be joined without ferrules.

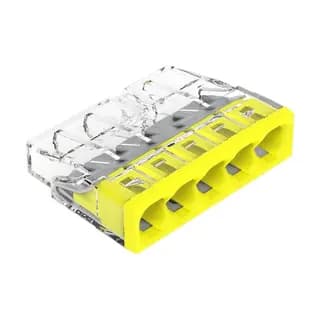

The code shows the size: 221-41x connectors take conductors up to 4 mm², 221-61x up to 6 mm², and the last digit is the number of conductors (2, 3 or 5). 221-2411 inline connectors join two conductors end to end, and 221-500/510 mounting carriers hold 221 connectors on a DIN rail or screw them to a panel. For solid conductors only, the compact 2273 PUSH WIRE connectors take 2 to 8 wires up to 2.5 mm² and are simply pushed in.
We supply 221 and 2273 connectors in boxes for contractors and panel builders. Tell us the wire sizes and quantities and we quote.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other 221 Lever Splicing Connectors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| 221-412 | Lever splicing connector, 2-conductor, max. 4 mm², all conductor types | 2 × 4 mm² | |
| 221-413 | Lever splicing connector, 3-conductor, max. 4 mm², all conductor types | 3 × 4 mm² | |
| 221-415 | Lever splicing connector, 5-conductor, max. 4 mm², all conductor types | 5 × 4 mm² | |
| 221-612 | Lever splicing connector, 2-conductor, max. 6 mm², all conductor types | 2 × 6 mm² | |
| 221-613 | Lever splicing connector, 3-conductor, max. 6 mm², all conductor types | 3 × 6 mm² | |
| 221-615 | Lever splicing connector, 5-conductor, max. 6 mm², all conductor types | 5 × 6 mm² | |
| 221-2411 | Inline lever splicing connector, 2-conductor, max. 4 mm², transparent cover | Inline · 4 mm² | |
| 221-2401 | Inline lever splicing connector, 2-conductor, max. 4 mm², white cover | Inline · 4 mm² | |
| 221-500 | Mounting carrier for 221 (4 mm²), DIN rail or screw mounting | Carrier · 4 mm² | |
| 221-510 | Mounting carrier for 221 (6 mm²), DIN rail or screw mounting | Carrier · 6 mm² | |
| 2273-202 | PUSH WIRE splicing connector, 2-conductor, solid, max. 2.5 mm² | 2 × 2.5 mm² | |
| 2273-203 | PUSH WIRE splicing connector, 3-conductor, solid, max. 2.5 mm² | 3 × 2.5 mm² | |
| 2273-204 | PUSH WIRE splicing connector, 4-conductor, solid, max. 2.5 mm² | 4 × 2.5 mm² | |
| 2273-205 | PUSH WIRE splicing connector, 5-conductor, solid, max. 2.5 mm² | 5 × 2.5 mm² | |
| 2273-208 | PUSH WIRE splicing connector, 8-conductor, solid, max. 2.5 mm² | 8 × 2.5 mm² |
Send a photo of the WAGO part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
WAGO 221 Lever Splicing Connectors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Junction boxes, luminaires and distribution wiring.
Joining conductors without terminal strips.
Quick, reliable connections during installation.
More from WAGO
15 part numbersWAGO switched-mode power supplies: Eco (2.5–10 A), Classic (1–10 A, TopBoost) and Pro 2 (5–40 A with TopBoost, PowerBoost and communication), 24 V and 48 V DC, plus electronic circuit breakers.
15 part numbersWAGO TOPJOB S rail-mount terminal blocks with Push-in CAGE CLAMP connection: through, ground, multi-conductor, double-deck and fuse terminal blocks from 2.5 to 16 mm², with jumpers, end plates and end stops.
6 part numbersWAGO relay modules: slim 857 and 859 series (6 mm, 1 changeover), 788 series (15 mm, up to 16 A) and 858 series with 4 changeover contacts and manual operation, for 24 V control circuits.
16 part numbersWAGO PFC100 and PFC200 controllers, Modbus TCP and PROFINET fieldbus couplers and 750 series I/O modules — digital, analog and RTD — for machine and building automation.
11 part numbersWAGO Smart Printer thermal transfer printer (300 dpi) and marking materials: WMB-Inline and Mini-WSB markers on reels, marking strips, WMB marking cards, ink ribbons and rollers.
FAQs
Yes. The 221 series takes solid, stranded and fine-stranded conductors in any combination within its size range, without ferrules.
Use 221 for mixed or stranded conductors and when you may need to reopen the connection. Use 2273 PUSH WIRE for solid conductors only, where a compact push-in splice is enough.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other 221 Lever Splicing Connectors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine WAGO products only — no copies, and no substitutes without your approval.
