PilzMagnetic, coded and mechanical safety switches for guard doors.
Price on request — quoted per part number
Quotes within 24 hours on working days

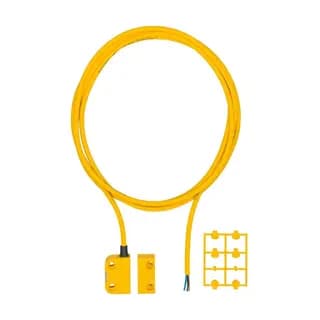

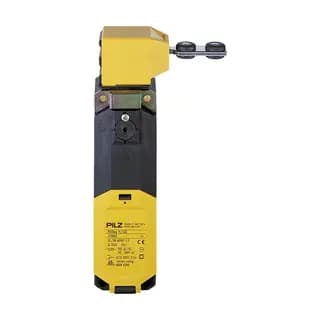

Guard doors on machines must be monitored so the machine stops when a door is opened. Pilz's PSEN range offers three technologies for this. PSENmag magnetic safety switches are compact and hygienic, with no moving parts. PSENcode non-contact switches use coded RFID actuators, which makes them very hard to defeat and gives diagnostic signals. PSENmech mechanical switches use a tongue actuator and are available with guard locking for doors that must stay closed until the machine has stopped.
PSEN switches are connected to a Pilz safety relay or PNOZmulti controller, which evaluates them safely. Choose the switch by door type, hygiene requirements, tamper resistance and whether guard locking is needed.
We supply PSEN switches and actuators and can retrofit guard monitoring on existing machines.
The codes our customers ask for most. Add the ones you need to your quote list — or send any other PSEN Safety Switches & Sensors variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|

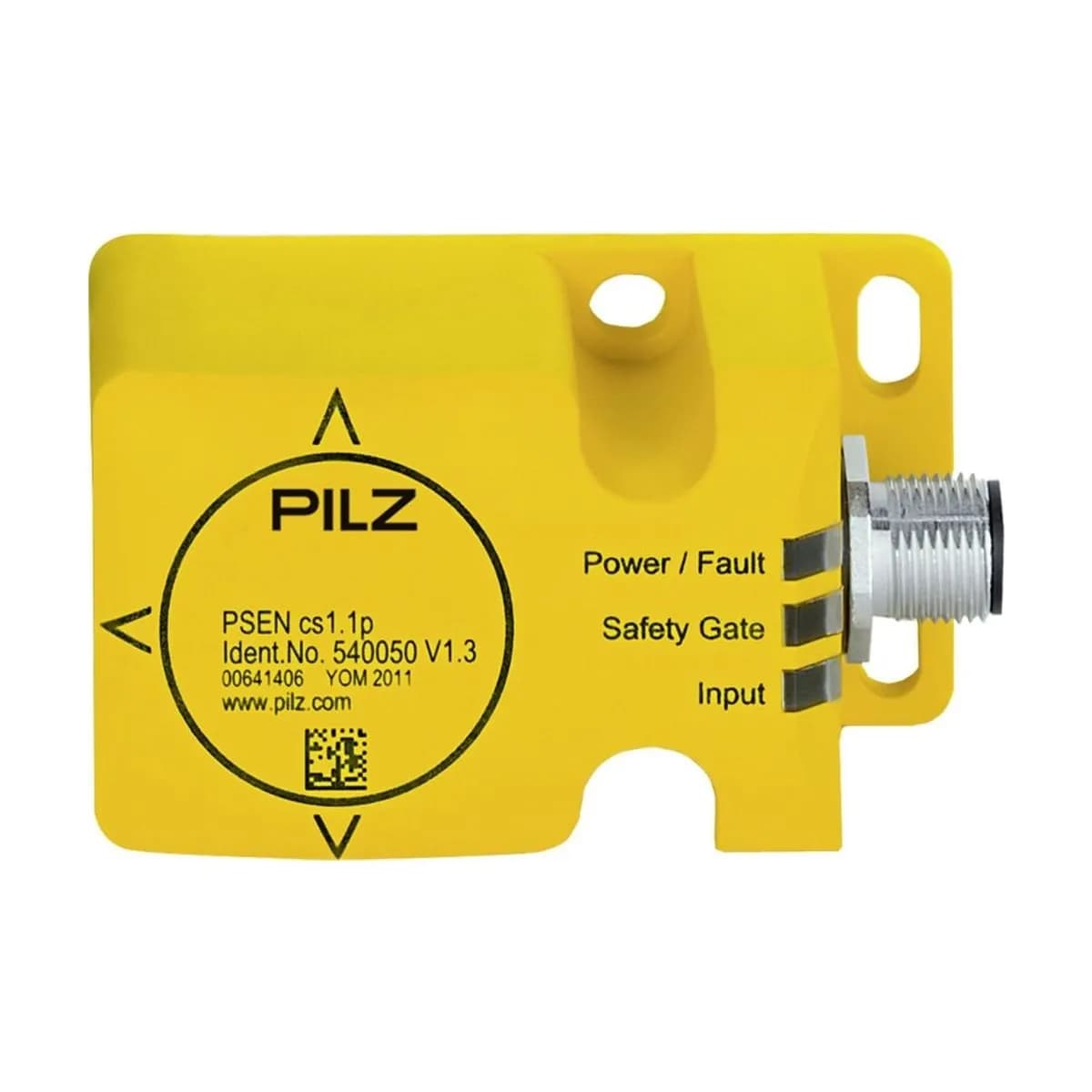

| 540050 | PSEN cs1.1p coded safety switch, 1 switch | PSENcode | |
| 540053 | PSEN cs1.1n coded safety switch, 1 switch | PSENcode | |
| 540080 | PSEN cs1.1 actuator | Actuator | |
| 506320 | PSEN ma1.4a-50 / PSEN ma1.4-03 mm magnetic safety switch set | PSENmag | |
| 506410 | PSEN ma1.1p-12 / 3 mm magnetic safety switch | PSENmag | |
| 570000 | PSEN me1S / 1AS mechanical safety switch with actuator | PSENmech |
Send a photo of the Pilz part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Pilz PSEN Safety Switches & Sensors prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Monitoring hinged and sliding guards on machines.
Magnetic switches for food and pharmaceutical equipment.
Mechanical switches that keep the door closed until the machine stops.
Coding, labeling and end-of-line automation for faster, error-free packing.
Explore
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
Precise coding, controlled automation and clean utilities for regulated production.
ExploreMore from Pilz
13 part numbersPilz PNOZ X safety relays for monitoring emergency-stop buttons, safety gates and light curtains: PNOZ X1, X2, X2.8P, X3, X4 and X11P with N/O safety contacts, plus PZE X4P contact expansion.
11 part numbersPilz PNOZsigma (PNOZ s) safety relays: PNOZ s3 and s4 for E-stop and gates, s5 and s9 with time delay, s6 for two-hand control, and s7, s8, s10 and s11 contact expansions.
7 part numbersPilz PNOZmulti 2 configurable safety systems: PNOZ m B0 and B1 base units configured with PNOZmulti Configurator, plus safe I/O and Ethernet communication modules.
FAQs
Magnetic switches are simple and hygienic. Coded (RFID) switches are much harder to bypass with a magnet and provide diagnostics.
No. It must be evaluated by a safety relay or safety controller.
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
The table shows the codes we are asked for most; we offer the other PSEN Safety Switches & Sensors variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Yes. We offer genuine Pilz products only — no copies, and no substitutes without your approval.
