12 part numbersEMC Isolators for VFD Motors
KATKO EMC isolators for motors supplied by variable frequency drives: shielded enclosures and EMC cable glands that keep the motor cable screen continuous, from 16 A to 400 A.
- EMC
- KEM EMC
- KUT EMC

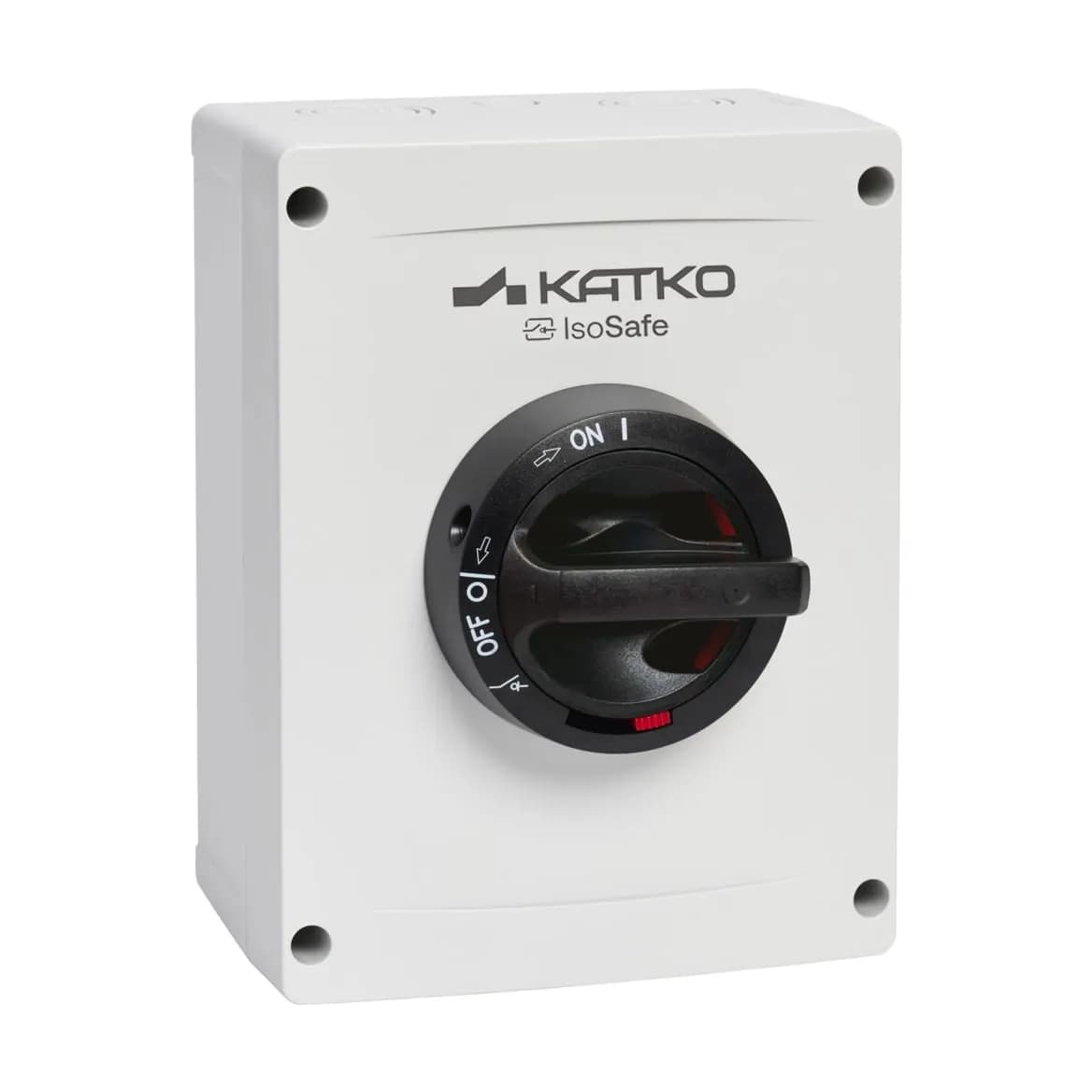

KATKOKATKO Polycarbonate Enclosed Isolators (KEM)
IsoSafe safety switches in UV-resistant polycarbonate enclosures, 3 and 4-pole, 10 A to 250 A.
- IsoSafe
- KEM
- KUM
- 3 and 4-pole, 10 A to 250 A
- UV and chemical-resistant polycarbonate
- Padlockable in the OFF position
- Door interlock for safe maintenance
- Indoor and outdoor use
Price on request — quoted per part number
Quotes within 24 hours on working days
- Genuine products onlyNo copies, no substitutes without your approval.
- Itemised quotationsClear prices, lead times and terms for every line.
- Engineer-checkedWe confirm the right part for your application.
- Delivery across PakistanDispatched to your plant, wherever it is.
About the KATKO Polycarbonate Enclosed Isolators (KEM)
A local isolator next to a motor lets maintenance staff switch off and lock out the machine before working on it — a basic safety requirement on conveyors, pumps, fans and HVAC units. KATKO's IsoSafe KEM range puts a fully rated load-break switch in a tough polycarbonate enclosure that resists UV, rain and many chemicals, so the same isolator works on a rooftop chiller and inside a food factory.
The reference shows the poles and current: in KEM 340 M3 the 3 is the number of poles, 40 the rated current in amps and M3 the enclosure size. The handle can be padlocked in the OFF position, and the door interlock stops the cover being opened while the switch is on.
We supply KEM isolators from 10 A up to 250 A, in 3-pole and 4-pole versions. Send the motor kW or current and the number of poles, or the reference from your existing isolator, and we quote the matching unit.
Range at a glance
- Range
- IsoSafe KEM / KUM
- Poles
- 3 or 4
- Rated current
- 10 A to 250 A (this list)
- Enclosure
- Polycarbonate, self-extinguishing
- Locking
- Padlockable handle
KATKO Polycarbonate Enclosed Isolators (KEM) part numbers
The codes our customers ask for most. Add the ones you need to your quote list — or send any other Polycarbonate Enclosed Isolators (KEM) variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| KEM 310 M2 2XM20P FIOrder no. 29682 | 3-pole enclosed isolator, 10 A, polycarbonate, enclosure size M2 | 3P · 10 A | |
| KEM 316 M2Order no. 44033 | 3-pole enclosed isolator, 16 A, polycarbonate, enclosure size M2 | 3P · 16 A | |
| KEM 325 M3Order no. 35151 | 3-pole enclosed isolator, 25 A, polycarbonate, enclosure size M3 | 3P · 25 A | |
| KEM 332 M3 2XM32POrder no. 27700 | 3-pole enclosed isolator, 32 A, polycarbonate, enclosure size M3 | 3P · 32 A | |
| KEM 340 M3Order no. 35153 | 3-pole enclosed isolator, 40 A, polycarbonate, enclosure size M3 | 3P · 40 A | |
| KEM 363VV M3Order no. 32065 | 3-pole enclosed isolator, 63 A, polycarbonate, enclosure size M3 | 3P · 63 A | |
| KEM 380 M3Order no. 39965 | 3-pole enclosed isolator, 80 A, polycarbonate, enclosure size M3 | 3P · 80 A | |
| KEM 3100 M5Order no. 38084 | 3-pole enclosed isolator, 100 A, polycarbonate, enclosure size M5 | 3P · 100 A | |
| KEM 3125 M5Order no. 37532 | 3-pole enclosed isolator, 125 A, polycarbonate, enclosure size M5 | 3P · 125 A | |
| KEM 3160 M5Order no. 37102 | 3-pole enclosed isolator, 160 A, polycarbonate, enclosure size M5 | 3P · 160 A | |
| KEM 3200 MF03Order no. 32380 | 3-pole enclosed isolator, 200 A, polycarbonate, enclosure size MF03 | 3P · 200 A | |
| KEM 3250 MF03Order no. 32420 | 3-pole enclosed isolator, 250 A, polycarbonate, enclosure size MF03 | 3P · 250 A |
Not sure of the part number?
Send a photo of the KATKO part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
KATKO Polycarbonate Enclosed Isolators (KEM) price in Pakistan
KATKO Polycarbonate Enclosed Isolators (KEM) prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Where the Polycarbonate Enclosed Isolators (KEM) is used
Motor isolation
Local isolation of pumps, fans and conveyor motors.
HVAC and rooftop units
Weather-resistant isolators for chillers and AHUs.
Machine lock-out
Padlockable OFF position for maintenance work.
Industries that run on it
Food & Beverage
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
Dairy
Process control, coding and water treatment for milk and dairy plants.
Explore
Pharmaceutical
Precise coding, controlled automation and clean utilities for regulated production.
Explore
Bottled Water
RO and mineral-water plants with filling-line coding and automation.
Explore
Engineering support for the Polycarbonate Enclosed Isolators (KEM)
More from KATKO
Other KATKO ranges
- 12 part numbers
12 part numbersStainless Steel Enclosed Isolators (KER)
KATKO IsoSafe KER stainless steel enclosed isolators in AISI 304 and 316L, 3 and 4-pole from 16 A to 630 A, for hygienic and corrosive environments with frequent wash-down.
- IsoSafe
- KER
- KUR
12 part numbersAluminium Enclosed Isolators (KEA)
KATKO IsoSafe KEA aluminium enclosed isolators, 3 and 4-pole from 16 A to 250 A, with weather, UV and impact-resistant enclosures for outdoor and heavy industrial use.
- IsoSafe
- KEA
- KE

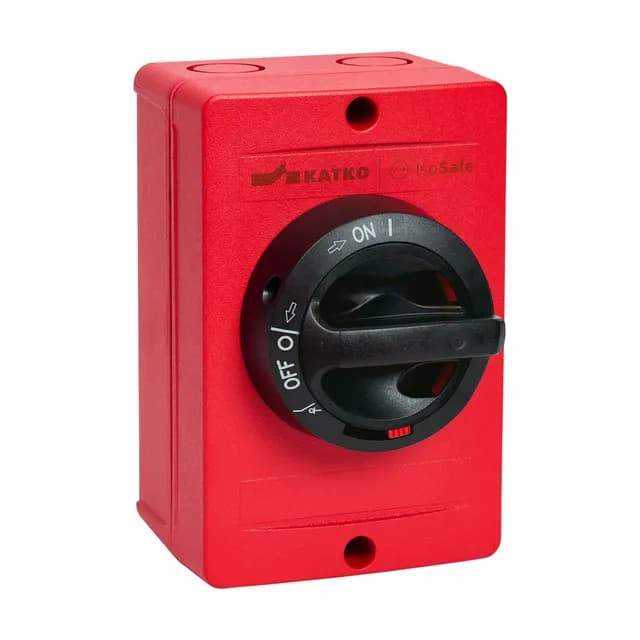

10 part numbersFire-Rated Isolators (KEA FR)
KATKO IsoSafe fire-rated KEA FR isolators, 3 and 4-pole from 16 A to 200 A, for smoke-extraction fans, fire pumps and other fire-safety equipment.
- IsoSafe
- KEA FR
- Fire rated

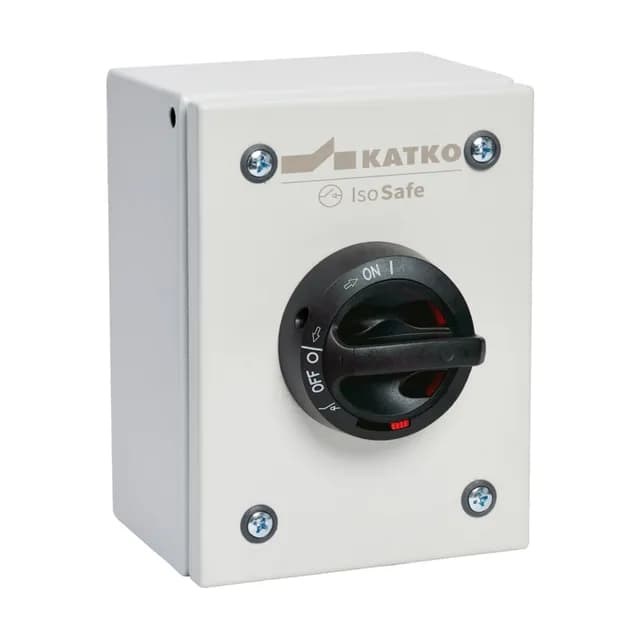

12 part numbersSheet Steel Enclosed Isolators (KET)
KATKO IsoSafe KET sheet steel enclosed isolators, 3-pole from 10 A to 250 A, for demanding industrial applications where mechanical strength matters.
- IsoSafe
- KET
- KUT

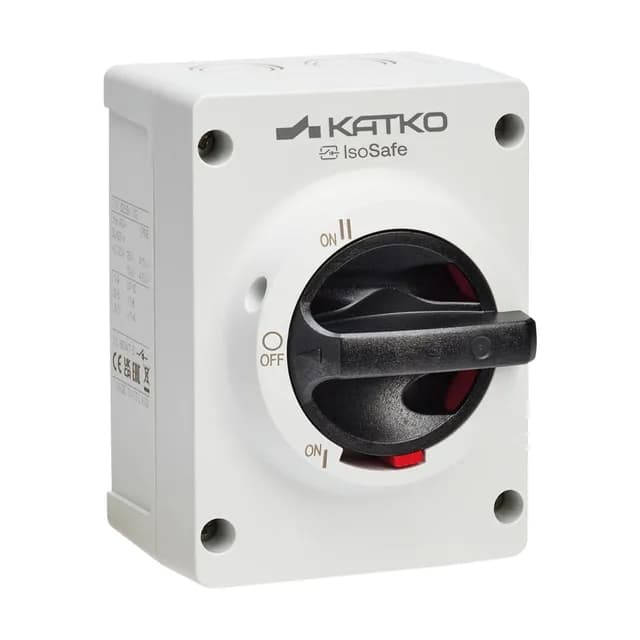

9 part numbersEnclosed Changeover Switches (TKM)
KATKO enclosed changeover switches (TKM) for manual switching between two supplies — mains and generator — in 1 to 4-pole versions from 16 A to 40 A.
- TKM
- Changeover
FAQs
Frequently asked questions
What does KEM 340 M3 mean?
KEM is the polycarbonate IsoSafe range, 3 is the number of poles, 40 the rated current in amps and M3 the enclosure size.
How do I choose the isolator rating?
Choose a rated current at or above the motor's full-load current, with the right number of poles (3 for three-phase, 4 when the neutral must also be isolated). Send the motor data and we select it.
What is the price of KATKO Polycarbonate Enclosed Isolators (KEM) in Pakistan?
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
My KATKO part number is not in the table. Can you offer it?
The table shows the codes we are asked for most; we offer the other Polycarbonate Enclosed Isolators (KEM) variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Are these genuine KATKO products?
Yes. We offer genuine KATKO products only — no copies, and no substitutes without your approval.
Talk to an engineer
Request a KATKO Polycarbonate Enclosed Isolators (KEM) quotation
Send the part numbers and quantities, a BOM or a nameplate photo. We check availability and reply with an itemised quotation.
Quotes within 24 hours on working days
