Walther-WerkeOn order
FW210506CC
CEE NEO One-Touch plug, 16 A, 5-pole, 6 h, 400 V, IP54, screwless
- Rated current
- 16 A
- Rated voltage
- 400 V (415 V), 50–60 Hz
- Poles
- 5 (3P + N + PE)
Price on request

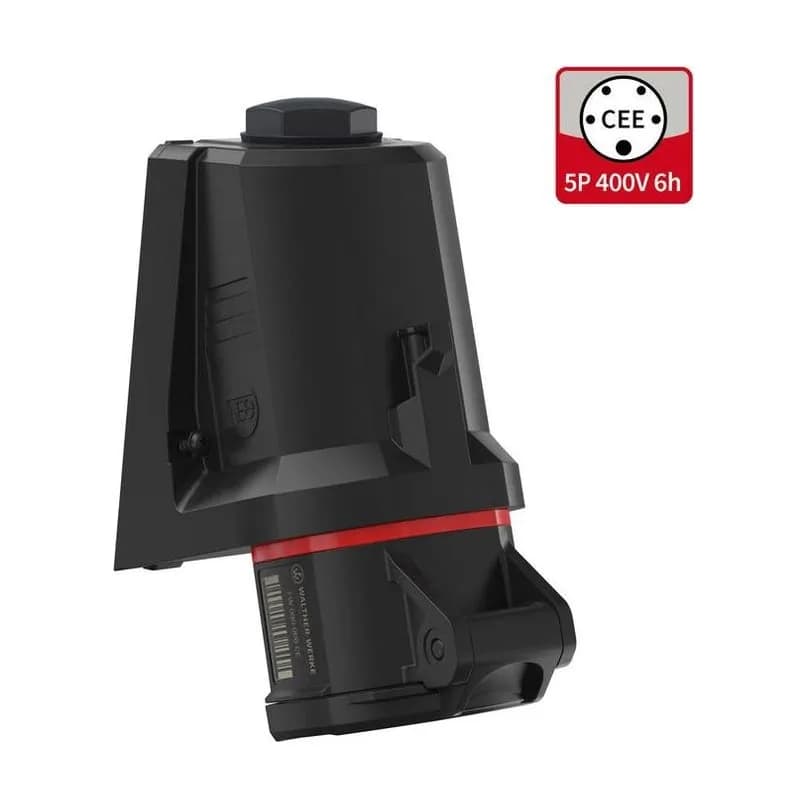

Walther-WerkeFW110506CCCEE NEO wall socket, 16 A, 5-pole, 6 h, 400 V, IP54, screwless
On orderSeries: CEE NEO
- Rated current
- 16 A
- Rated voltage
- 400 V
- Poles
- 5 (3P + N + PE)
- Connection
- Screwless cage clamp
- Degree of protection
- IP54
- Earth position
- 6 h
- Genuine product
- Engineer-checked before quoting
- Delivery across Pakistan
Overview
A surface-mounted 16 A five-pole CEE socket for supplying three-phase machines and portable equipment on the shop floor. Screwless cage-clamp terminals speed up installation, and the socket accepts cable entry from the top (M32, splittable) or from the rear (M25 knockout). Red colour coding for 400 V.
- 16 A, 5-pole, 400 V, 6 h, red
- Screwless cage-clamp terminals
- Cable entry M32 top or M25 rear
- IP54, PA6 housing
Specifications
| Rated current | 16 A |
|---|---|
| Rated voltage | 400 V |
| Poles | 5 (3P + N + PE) |
| Connection | Screwless cage clamp |
| Degree of protection | IP54 |
| Earth position | 6 h |
| Cable entry | M32 top, M25 rear |
