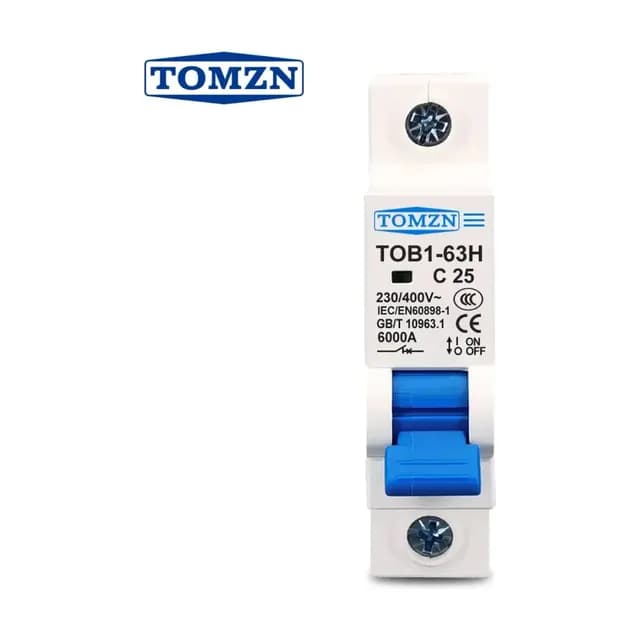

TOB1-63
AC miniature circuit breaker, 1P, C curve, 230/400 V, 3–63 A
- Rated current
- 3 – 63 A (state rating)
- Rated voltage
- 230 / 400 V AC
- Poles
- 1P
Price on request

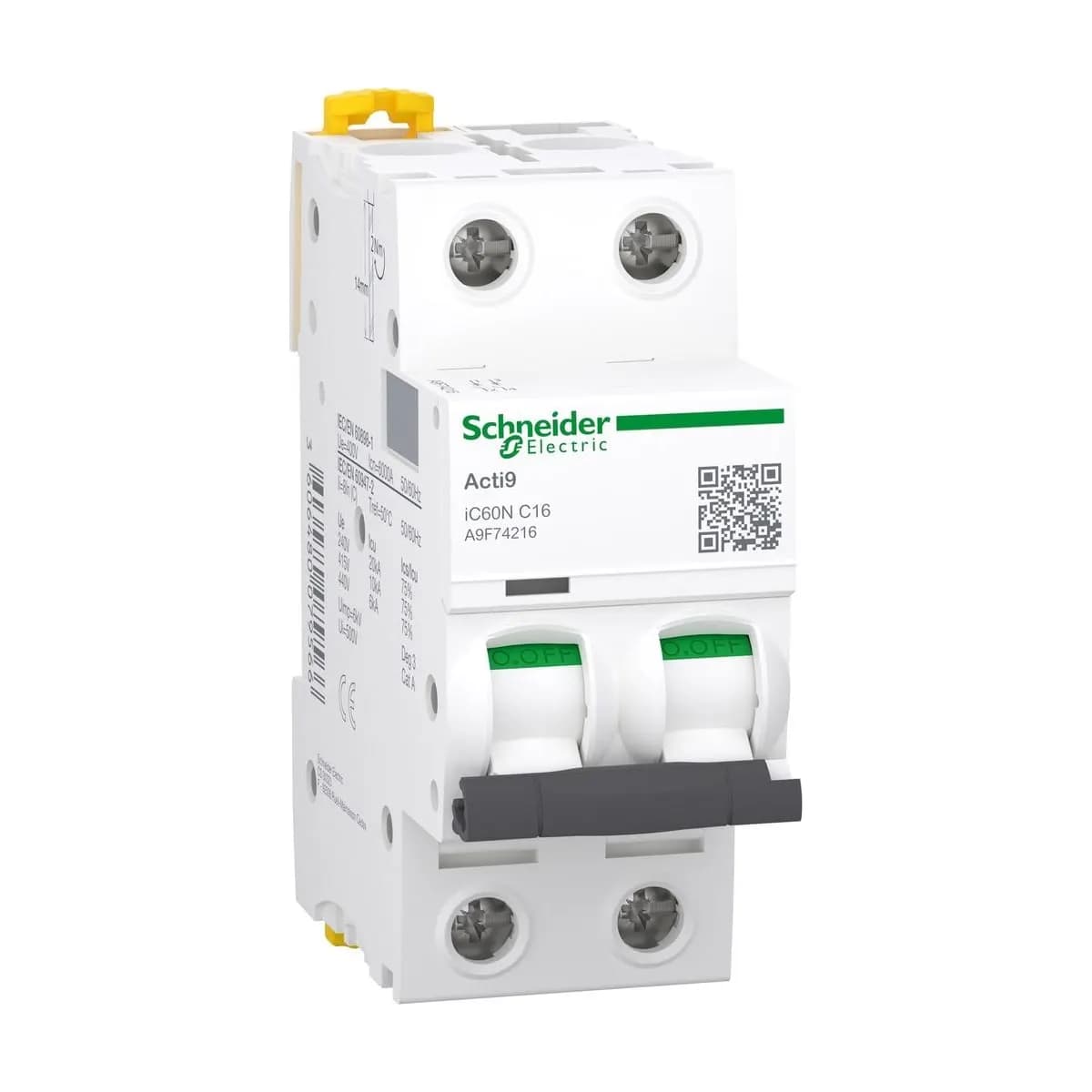

Schneider ElectricA9F74216Acti9 iC60N miniature circuit breaker, 2P, 16 A, C curve
On orderSeries: Acti9 iC60N
- Rated current
- 16 A
- Poles
- 2P
- Tripping curve
- C
- Mounting
- DIN rail
- Breaking capacity
- 6000 A IEC 60898-1
- Breaking capacity
- 10 kA IEC 60947-2
- Genuine product
- Engineer-checked before quoting
- Delivery across Pakistan
Overview
A two-pole miniature circuit breaker for protecting single-phase circuits and control supplies against overload and short circuit. The C curve suits mixed loads, including small motors and transformers. Rated 6000 A under IEC/EN 60898-1 and 10 kA under IEC/EN 60947-2 for industrial distribution boards.
- 2 poles, 16 A, C tripping curve
- 6000 A to IEC/EN 60898-1
- 10 kA to IEC/EN 60947-2
- DIN-rail mounting, Acti9 accessories
Specifications
| Rated current | 16 A |
|---|---|
| Poles | 2P |
| Tripping curve | C |
| Mounting | DIN rail |
| Breaking capacity | 6000 A IEC 60898-1 |
| Breaking capacity | 10 kA IEC 60947-2 |
Need installation or integration?
Our engineers can install, program and commission it — Control Panels.
Related products
All circuit breakers

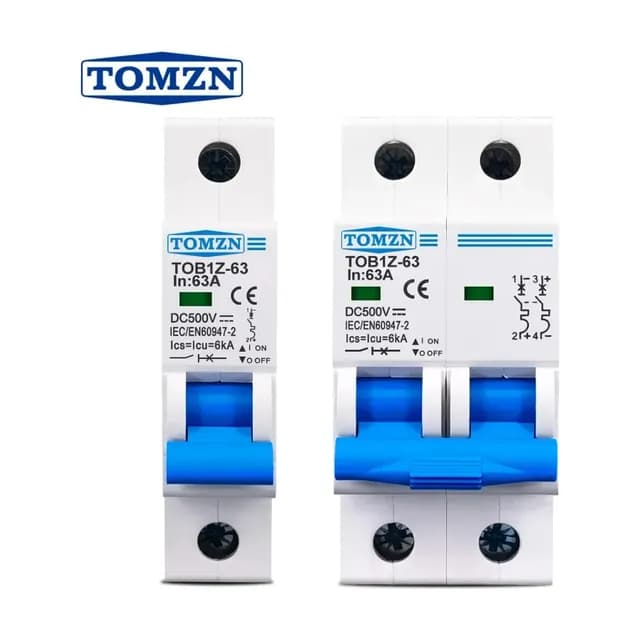

TOMZNOn orderTOB1Z-63
