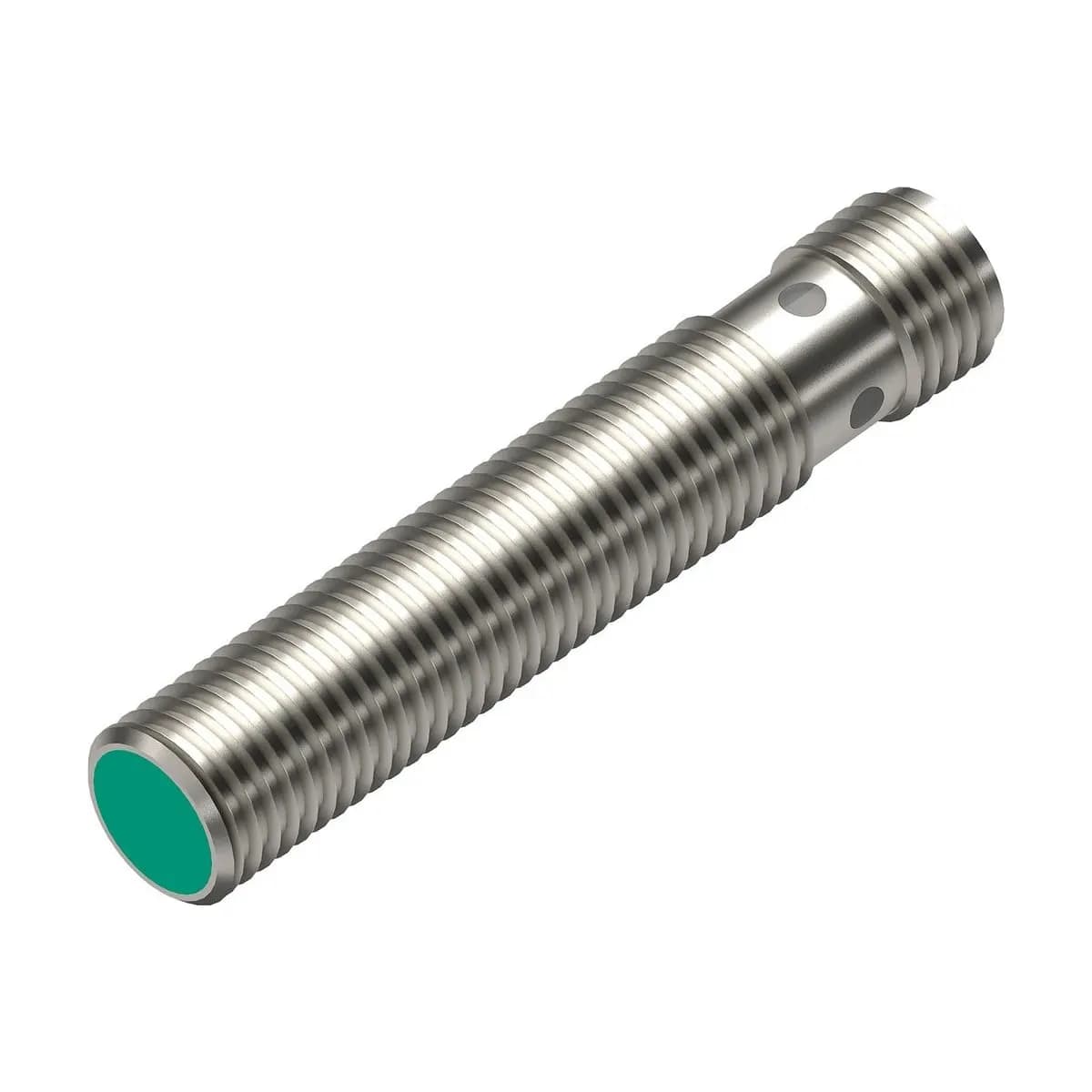

Pepperl+FuchsNBB4-12GM50-E2-V1Inductive sensor M12, 4 mm flush, PNP NO, M12 connector, −40 to +85 °C
On order
- Sensing range
- 4 mm
- Output
- PNP, NO
- Supply voltage
- 6 – 36 V DC
- Housing
- M12 × 1, flush
- Connection
- M12 connector, 3-pin
- Switching frequency
- 0 – 2550 Hz
- Genuine product
- Engineer-checked before quoting
- Delivery across Pakistan
Overview
A compact M12 version of the heavy-duty inductive sensor range: 4 mm flush sensing, 6–36 V supply, very high switching frequency and an extended −40 to +85 °C temperature range. Its green PBT sensing face and white-bronze-coated brass housing stand up to harsh, wet and vibrating installations.
- 4 mm rated operating distance, flush
- Switching frequency up to 2550 Hz
- Temperature range −40 to +85 °C
- M12 3-pin plug connection
Specifications
| Sensing range | 4 mm |
|---|---|
| Output | PNP, NO |
| Supply voltage | 6 – 36 V DC |
| Housing | M12 × 1, flush |
| Connection | M12 connector, 3-pin |
| Switching frequency | 0 – 2550 Hz |
| Enclosure rating | IP65 – IP69 |
Need installation or integration?
Our engineers can install, program and commission it — Industrial Automation.
