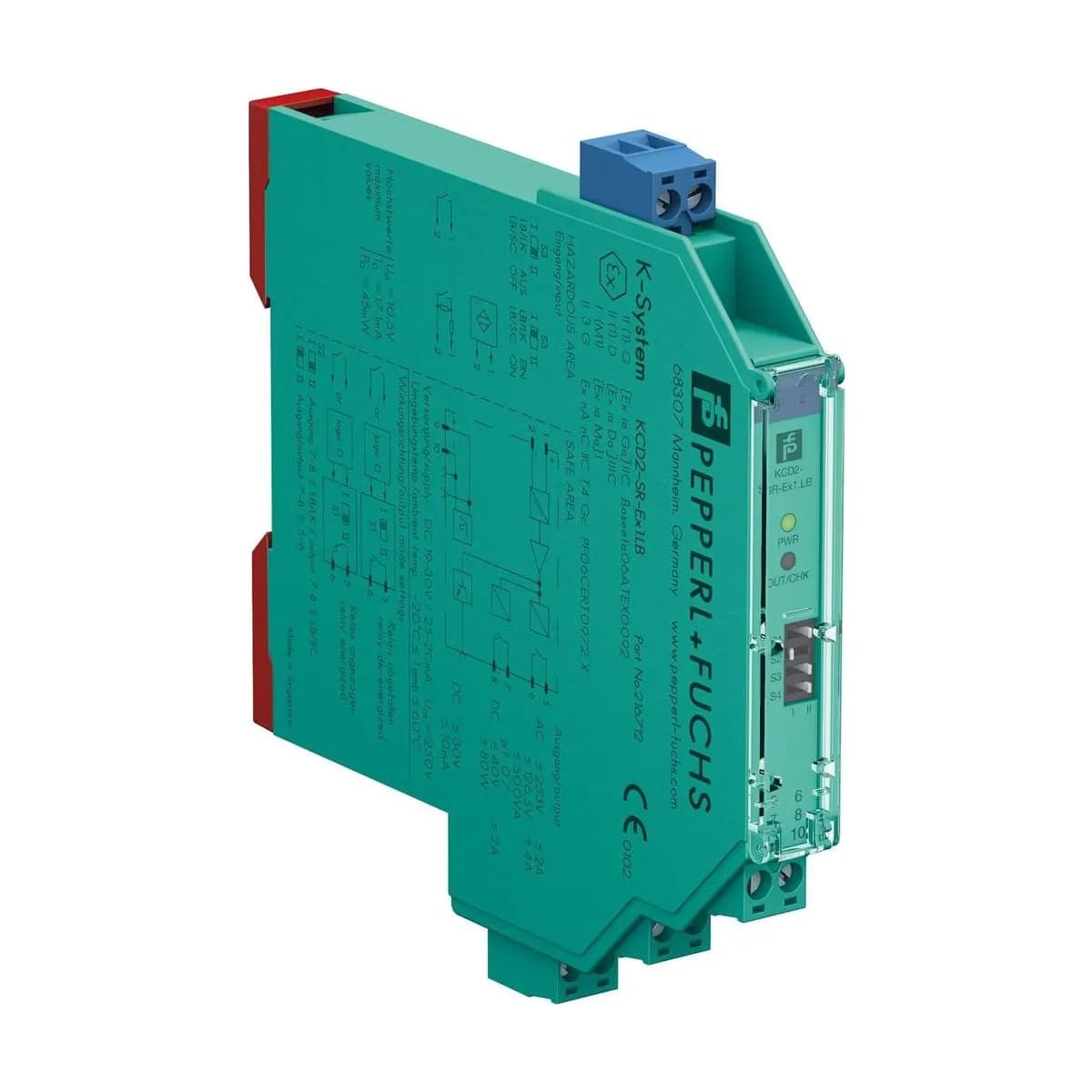

Pepperl+FuchsKCD2-SR-Ex1.LBSwitch amplifier KCD2-SR-Ex1.LB, 1-channel isolated barrier, 2 relay outputs, SIL 2
On order
- Supply voltage
- 19 – 30 V DC (Power Rail or terminals)
- Channels
- 1
- Input
- NAMUR / dry contact (EN 60947-5-6)
- Outputs
- 2 relays
- Contact rating
- 250 V AC / 2 A; 30 V DC / 2 A
- Functional safety
- SIL 2
- Genuine product
- Engineer-checked before quoting
- Delivery across Pakistan
Overview
An intrinsic-safety isolated barrier that brings signals from NAMUR sensors or dry contacts in hazardous areas into the safe-area control system. It provides two relay outputs, configurable as a signal splitter or with a fault output, and detects broken or shorted field wiring. Only 12.5 mm wide on a 35 mm DIN rail.
- NAMUR sensor or dry contact inputs from hazardous areas
- Two relay outputs, usable as signal splitter
- Line fault detection for cable break and short circuit
- Up to SIL 2 (SC 3) to IEC/EN 61508
Specifications
| Supply voltage | 19 – 30 V DC (Power Rail or terminals) |
|---|---|
| Channels | 1 |
| Input | NAMUR / dry contact (EN 60947-5-6) |
| Outputs | 2 relays |
| Contact rating | 250 V AC / 2 A; 30 V DC / 2 A |
| Functional safety | SIL 2 |
| Width | 12.5 mm |
