Schneider ElectricSchneider Electric TeSys LRD Thermal Overload Relays
Class 10A thermal overload relays from 1 A to 65 A that plug directly under LC1D contactors.
- TeSys LRD
- LRD
- LRD3
- Setting ranges from 1 A to 65 A
- Class 10A for standard motors
- Plugs directly under LC1D contactors
- Phase-loss sensitive
- Test and stop buttons, manual or auto reset
Price on request — quoted per part number
Quotes within 24 hours on working days
- Genuine products onlyNo copies, no substitutes without your approval.
- Itemised quotationsClear prices, lead times and terms for every line.
- Engineer-checkedWe confirm the right part for your application.
- Delivery across PakistanDispatched to your plant, wherever it is.
About the Schneider Electric TeSys LRD Thermal Overload Relays
A thermal overload relay protects a motor against overload and phase loss: when the current stays above the set value, the relay opens its contact and drops out the contactor. The TeSys LRD range is designed to plug straight into the bottom of TeSys D (LC1D) contactors, making a compact starter with no extra wiring between the two.

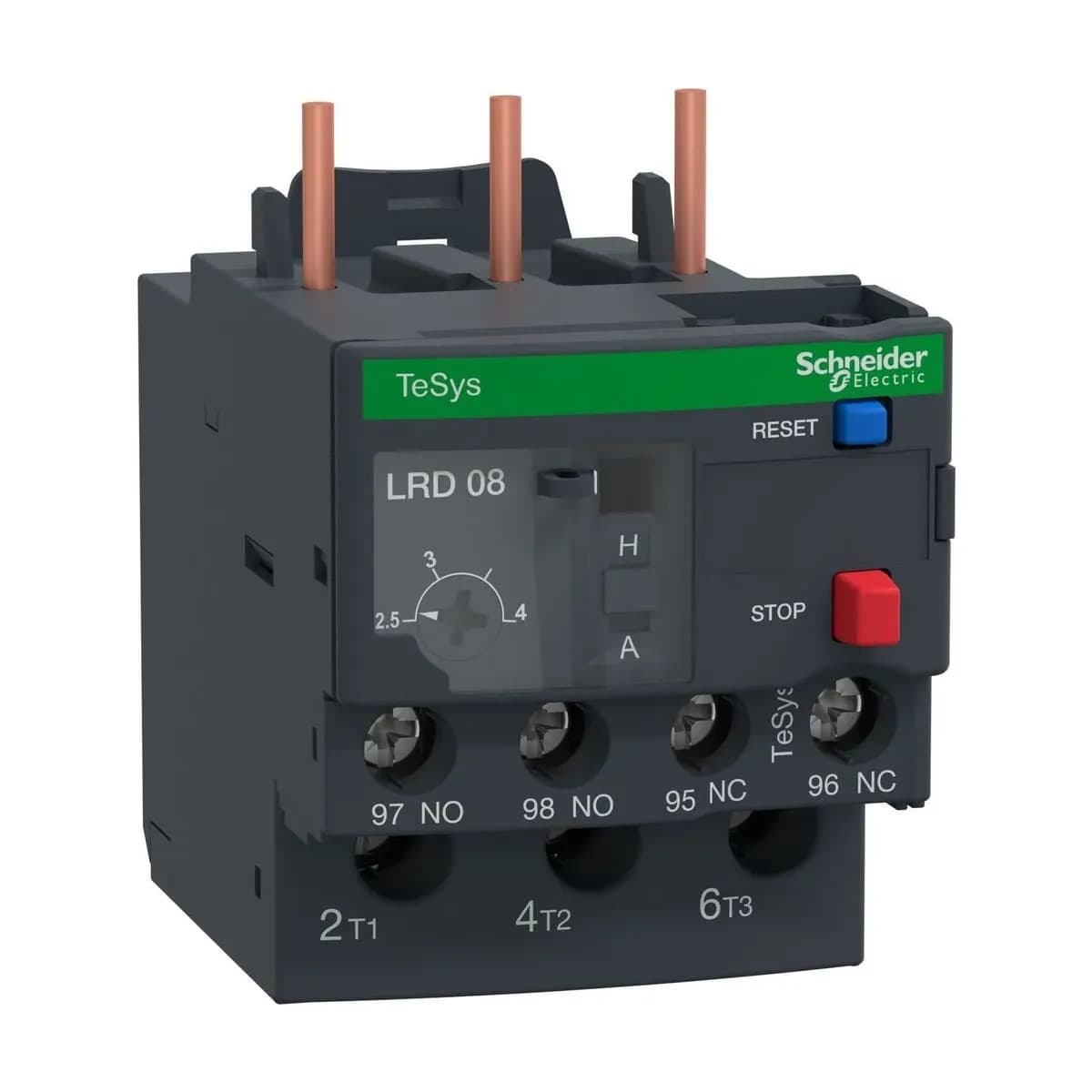

Each LRD covers a setting range printed on its code: LRD08 covers 2.5–4 A, LRD14 7–10 A, LRD32 23–32 A, and the LRD3xx relays cover the larger contactors up to 65 A. All are class 10A, suitable for standard motors with normal starting times, and have a test button, a stop button and a choice of manual or automatic reset.
To choose an LRD, take the motor nameplate current and pick the relay whose range contains it, then set the dial to that current. Send us the motor data or the code of your existing relay and we match it.
Range at a glance
- Setting ranges
- 1–1.6 A up to 48–65 A
- Trip class
- 10A
- Mounting
- Directly under TeSys D contactors
- Contacts
- 1 NO + 1 NC
- Reset
- Manual or automatic
Schneider Electric TeSys LRD Thermal Overload Relays part numbers
The codes our customers ask for most. Add the ones you need to your quote list — or send any other TeSys LRD Thermal Overload Relays variant and we check it for you.
| Part number | Description | Key spec | Quote |
|---|---|---|---|
| LRD06 | Thermal overload relay, 1–1.6 A, class 10A | 1–1.6 A | |
| LRD07 | Thermal overload relay, 1.6–2.5 A, class 10A | 1.6–2.5 A | |
| LRD08 | Thermal overload relay, 2.5–4 A, class 10A | 2.5–4 A | |
| LRD10 | Thermal overload relay, 4–6 A, class 10A | 4–6 A | |
| LRD12 | Thermal overload relay, 5.5–8 A, class 10A | 5.5–8 A | |
| LRD14 | Thermal overload relay, 7–10 A, class 10A | 7–10 A | |
| LRD16 | Thermal overload relay, 9–13 A, class 10A | 9–13 A | |
| LRD21 | Thermal overload relay, 12–18 A, class 10A | 12–18 A | |
| LRD22 | Thermal overload relay, 16–24 A, class 10A | 16–24 A | |
| LRD32 | Thermal overload relay, 23–32 A, class 10A | 23–32 A | |
| LRD340 | Thermal overload relay, 30–40 A, class 10A | 30–40 A | |
| LRD350 | Thermal overload relay, 37–50 A, class 10A | 37–50 A | |
| LRD365 | Thermal overload relay, 48–65 A, class 10A | 48–65 A |
Not sure of the part number?
Send a photo of the Schneider Electric part’s nameplate or label. Our engineers identify it and reply with the exact code and a quotation.
Schneider Electric TeSys LRD Thermal Overload Relays price in Pakistan
Schneider Electric TeSys LRD Thermal Overload Relays prices are quoted per part number. The final price depends on the exact code, the quantity and the exchange rate on the day, so we send an itemised quotation with prices, lead time and terms for every line.
To get a price, add part numbers from the table to your quote list, message us on WhatsApp, or send a photo of the nameplate. We deliver across Pakistan — Karachi, Lahore, Faisalabad, Islamabad and industrial areas in between.
Applications
Where the TeSys LRD Thermal Overload Relays is used
DOL starters
Overload protection for pumps, fans and conveyors.
Star-delta starters
Protection in the phase circuit of star-delta starters.
Panel spares
Replacing tripped or damaged relays.
Industries that run on it
Textile
Drives, controls and energy savings for spinning, weaving and processing mills.
Explore
Food & Beverage
Hygienic automation, coding and water systems for high-speed food and beverage lines.
Explore
Plastics & Chemicals
Robust instrumentation, drives and safety systems for demanding processes.
Explore
Engineering support for the TeSys LRD Thermal Overload Relays
More from Schneider Electric
Other Schneider Electric ranges
- 14 part numbers
12 part numbersAltivar Machine ATV320 Drives
Schneider Electric Altivar Machine ATV320 variable speed drives, compact format: 1-phase 200–240 V from 0.37 to 2.2 kW and 3-phase 380–500 V from 0.75 to 15 kW, for packaging, handling and process machines.
- ATV320
- Altivar Machine
- ATV320…N4C
- ATV320…M2C
12 part numbersTeSys GV2 Motor Circuit Breakers
Schneider Electric TeSys GV2ME thermal-magnetic motor circuit breakers (MPCB), 3-pole, adjustable from 0.63 A to 32 A, for motor protection without fuses, with GVAE auxiliary contacts.
- TeSys GV2
- GV2ME
- GVAE11
9 part numbersAltivar Easy ATV310 Drives
Schneider Electric Altivar Easy ATV310 variable speed drives for 3-phase 380–460 V motors from 0.75 kW to 15 kW — simple, robust drives for pumps, fans, conveyors and mixers.
- ATV310
- Altivar Easy 310
- ATV310H…N4E
17 part numbersActi9 iC60N MCBs
Schneider Electric Acti9 iC60N miniature circuit breakers (A9F44 references), C curve, 1, 2, 3 and 4-pole from 6 A to 63 A, for distribution boards and control panels.
- Acti9
- iC60N
- A9F44
- A9F74
12 part numbersHarmony XB5 & XB4 Push Buttons
Schneider Electric Harmony XB5 (plastic) and XB4 (metal) Ø22 mm control units: flush push buttons, emergency stops, selector switches and LED pilot lights for control panels and machines.
- Harmony XB5
- Harmony XB4
- XB5A
- XB4B
FAQs
Frequently asked questions
How do I set an LRD overload relay?
Set the dial to the motor's full-load current from its nameplate. In a star-delta starter wired in the phase circuit, set it to the phase current (about 58% of the line current).
Which LRD for a 7.5 kW motor?
A 7.5 kW 400 V motor draws roughly 14–15 A, so the LRD21 (12–18 A) is the usual choice. Always confirm with the nameplate current.
What is the price of Schneider Electric TeSys LRD Thermal Overload Relays in Pakistan?
Prices depend on the exact part number, quantity and current exchange rate. Send us the codes you need and we reply with an itemised quotation. Quotes within 24 hours on working days.
My Schneider Electric part number is not in the table. Can you offer it?
The table shows the codes we are asked for most; we offer the other TeSys LRD Thermal Overload Relays variants too. Send the part number or a photo of the nameplate and we reply with a quotation.
Are these genuine Schneider Electric products?
Yes. We offer genuine Schneider Electric products only — no copies, and no substitutes without your approval.
